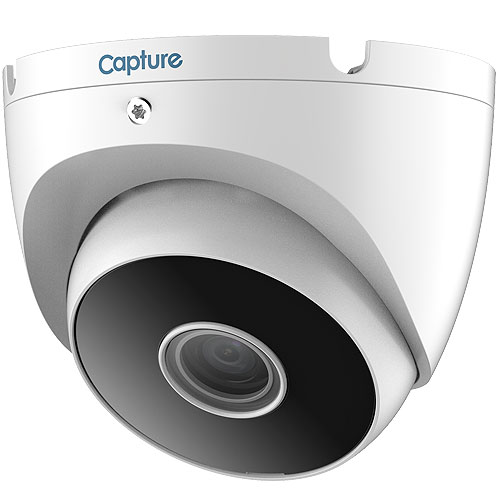

Capture R2-4MPHDEYE 4 Megapixel Surveillance Camera - Eyeball

Model: R2-4MPHDEYE

Category: HD Over Coax Cameras, HDoC Dome Cameras

Brand: Capture Video Surveillance

Dealer pricing

The R2-4MPHDEYE HDCVI eyeball camera is constructed with a 2.8mm fixed lens. This 4MP camera is IP67 rated and uses existing cabling infrastructure for a default HDCVI signal with a switchable output option to other multi formats (AHD, TVI, CVBS). The multi-language OSD provides structural flexibility and high performance making this camera an ideal choice for numerous indoor/outdoor applications such as commercial applications, home or office use as well as monitoring hallways, unattended storage areas & various other installation applications.

Main Features:

  • 1/2.7"CMOS, 2MP
  • 0.04Lux/F2.0, 0lux IR on
  • 30fps@4MP
  • CVI/CVBS/AHD/TVI switchable
  • 2.8mm fixed lens
  • Max. IR length 20m, Smart IR
  • IP67, DC12V
  • 36 Month Warranty

Analog Video Signal Format HDCVI, TVI, CVI, CVBS, AHD, AHD, CVBS, CVI, HDCVI, TVI
Brand Name Capture
Category Type HDoC Dome Cameras
Color Supported Color
Connectivity Technology Wired
Device Supported Surveillance Camera
Diameter 3.7"
Durability Vandal Resistant
Effective Camera Resolution 4 Megapixel
Environmentally Friendly Yes
Features Automatic White Balance, Highlight Compensation (HLC), Auto Gain Control, Back Light Compensation (BLC), Built-in OSD Function, Ingress Protection, 2D Noise Reduction, IP67, Vandal Resistant, 2D Noise Reduction, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Built-in OSD Function, Day/Night, Digital Wide Dynamic Range (D-WDR), Highlight Compensation (HLC), Ingress Protection, Built-in IR LED, Day/Night
Field of View 125° X105° X56° (DIAGONAL X HORIZONTAL X VERTICAL)
Fixed Focal Length 2.80 mm
Form Factor Eyeball
HD Recording Yes
Height 3.7"
Illumination 0 Lux
Image Sensor CMOS
Image Sensor Type CMOS
Indoor/Outdoor Indoor/Outdoor
Ingress Protection Rating IP67
Input Voltage 12 V DC
Lens Included Yes
Lens Mount Type Board Mount
Lens Type Fixed
Limited Warranty 36 Month
Longest Shutter Speed 1/25 Second
Manufacturer Capture Camera
Model R2-4MPHDEYE
Maximum Aperture f/2
Maximum Focal Length 2.80 mm
Maximum Frame Rate 30 fps
Maximum Operating Temperature 140°F (60°C), 140°F (60°C)
Maximum Video Resolution 2560 x 1440
Minimum Operating Temperature -40°F (-40°C), -40°F (-40°C)
Night Vision Distance 65.62 ft
Operating Humidity 95%
Product Series HD
Product Type Surveillance Camera
Shortest Shutter Speed 1/100000 Second
Vendor Name Capture Video Surveillance
Video Signal Format NTSC, PAL, NTSC, PAL
Weight (Approximate) 9.52 oz
