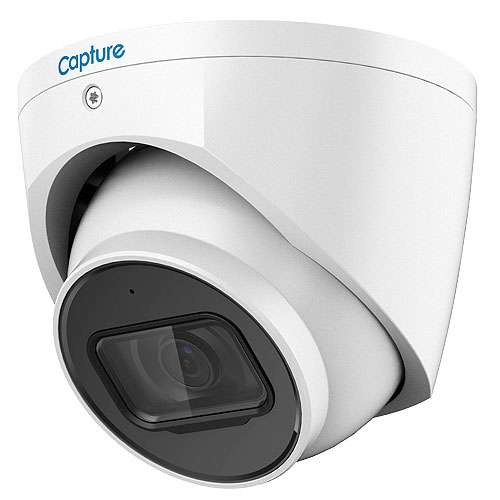

Capture R2-4MPIPTUR 4 Megapixel Network Camera - Turret

Model: R2-4MPIPTUR

Category: IP Cameras, IP Dome Cameras

Brand: Capture Video Surveillance

Dealer pricing

The R2-4MPIPTUR turret camera is constructed with a 2.8mm fixed lens. This 4MP camera is IP67 rated and provides HD image quality and with features of simple installation and easy operation makes this camera an ideal choice for numerous indoor/outdoor applications such as commercial applications, home or office use as well as monitoring hallways, unattended storage areas & various other installation applications.

Main Features

  • 1/3" 4MP CMOS, WDR(120dB)
  • 0.008Lux/F1.6
  • H.265/H.264, 30fps@4M
  • 2.8mm/F1.6 Fixed lens
  • IR Distance 30m, Smart IR
  • Micro SD, Max. 256GB
  • IP67, DC12V
  • 36 Month Warranty

Brand Name Capture
Category Type IP Dome Cameras
Color Supported Color
Connectivity Technology Wired
Diameter 4.8"
Durability Vandal Resistant
Effective Camera Resolution 4 Megapixel
Environmentally Friendly Yes
Features Built-in IR LED, 3D Digital Noise Reduction, 3D Digital Noise Reduction, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Built-in Microphone, Highlight Compensation (HLC), HTTPS Encryption, Ingress Protection, Motion Detection, Region of Interest, Wide Dynamic Range, IP67, Ingress Protection, Wide Dynamic Range, Vandal Resistant, Back Light Compensation (BLC), Region of Interest, Auto Gain Control, Automatic White Balance, Highlight Compensation (HLC), Motion Detection, Built-in Microphone, HTTPS Encryption
Field of View HORIZONTAL: 102.0° VERTICAL: 55° DIAGONAL: 121°
Fixed Focal Length 2.80 mm
Form Factor Turret
HD Recording Yes
Height 4.8"
Image Sensor CMOS
Image Sensor Type CMOS
Indoor/Outdoor Indoor/Outdoor
Ingress Protection Rating IP67
Input Voltage 12 V DC
Lens Included Yes
Lens Mount Type M12-mount
Lens Type Fixed
Limited Warranty 36 Month
Longest Shutter Speed 1/3 Second
Manufacturer Capture Camera
Model R2-4MPIPTUR
Maximum Aperture f/1.6
Maximum Focal Length 2.80 mm
Maximum Frame Rate 30 fps
Maximum Operating Temperature 140°F (60°C), 140°F (60°C)
Maximum Video Resolution 2688 x 1520
Minimum Operating Temperature -40°F (-40°C), -40°F (-40°C)
Network (RJ-45) Yes
Night Vision Distance 98.43 ft
Operating Humidity 95%
Product Series HD
Product Type Network Camera
Remote Management Yes
Shortest Shutter Speed 1/100000 Second
Vendor Name Capture Video Surveillance
Video Formats H.264B, MJPEG, H.264, H.264B, H.265, MJPEG, H.264, H.265
Weight (Approximate) 1.06 lb
