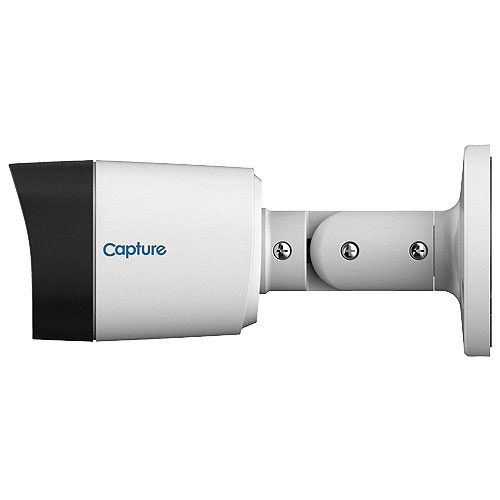

Capture R2-2MPHDBUL 2 Megapixel Surveillance Camera - Bullet

Model: R2-2MPHDBUL

Category: HD Over Coax Cameras, HDoC Bullet Cameras

Brand: Capture Video Surveillance

Dealer pricing

The R2-2MPHDBUL HDCVI bullet camera is constructed with a 2.8mm fixed lens. This 2MP camera is IP67 rated and uses existing cabling infrastructure for a default HDCVI signal with a switchable output option to other multi formats (AHD, TVI, CVBS). The multilanguage OSD provides structural flexibility and high performance making this camera an ideal choice for numerous indoor/outdoor applications such as commercial applications, home or office use as well as monitoring hallways, unattended storage areas & various other installation applications.

Main Features

  • 1/2.7"CMOS, 2MP
  • 0.04Lux/F1.85, 0lux IR on
  • 30fps@1080P
  • CVI/CVBS/AHD/TVI switchable
  • 2.8mm fixed lens
  • Max. IR length 20m, Smart IR
  • IP67, DC12V
  • 36 Month Warranty

Analog Video Signal Format AHD, AHD, CVBS, CVI, HDCVI, TVI, CVBS, CVI, TVI, HDCVI
Brand Name Capture
Category Type HDoC Bullet Cameras
Color Supported Color
Connectivity Technology Wired
Device Supported Surveillance Camera
Durability Vandal Resistant
Effective Camera Resolution 2 Megapixel
Environmentally Friendly Yes
Features Auto Gain Control, IP67, Automatic White Balance, Back Light Compensation (BLC), Highlight Compensation (HLC), Day/Night, Ingress Protection, Built-in OSD Function, Built-in IR LED, 2D Noise Reduction, Vandal Resistant, 2D Noise Reduction, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Built-in OSD Function, Day/Night, Digital Wide Dynamic Range (D-WDR), Highlight Compensation (HLC), Ingress Protection
Field of View H: 93° (103°, 54.7°)
Fixed Focal Length 2.80 mm
Form Factor Bullet
HD Recording Yes
Image Sensor CMOS
Image Sensor Type CMOS
Indoor/Outdoor Indoor/Outdoor
Ingress Protection Rating IP67
Input Voltage 12 V DC
Lens Included Yes
Lens Mount Type Board Mount
Lens Type Fixed
Limited Warranty 36 Month
Longest Shutter Speed 1/25 Second
Manufacturer Capture Camera
Model R2-2MPHDBUL
Maximum Aperture f/1.85
Maximum Focal Length 2.80 mm
Maximum Frame Rate 60 fps
Maximum Operating Temperature 140°F (60°C), 140°F (60°C)
Maximum Video Resolution 1920 x 1080
Minimum Operating Temperature -40°F (-40°C), -40°F (-40°C)
Night Vision Distance 65.62 ft
Operating Humidity 95%
Product Series HD
Product Type Surveillance Camera
Shortest Shutter Speed 1/100000 Second
Vendor Name Capture Video Surveillance
Video Signal Format NTSC, PAL, NTSC, PAL
Weight (Approximate) 8.82 oz
