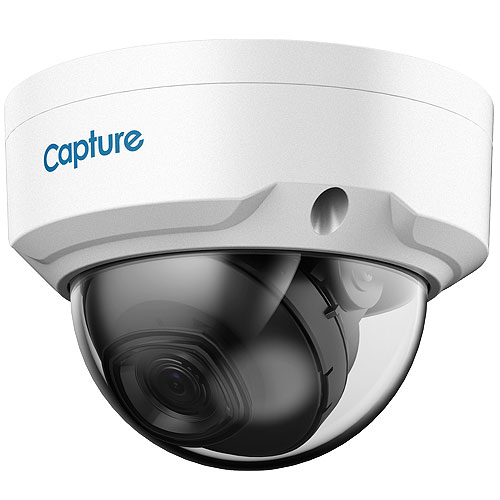

Capture R2-4MPIPDME 4 Megapixel Network Camera - Dome

Model: R2-4MPIPDME

Category: IP Cameras, IP Dome Cameras

Brand: Capture Video Surveillance

Dealer pricing

The R2-4MPIPDME dome camera is constructed with a 2.8mm fixed lens. This 4MP camera is IP67 rated and provides HD image quality and with features of simple installation and easy operation makes this camera an ideal choice for numerous indoor/outdoor applications such as commercial applications, home or office use as well as monitoring hallways, unattended storage areas & various other installation applications.

Main Features

  • 1/3" 4MP CMOS, WDR(120dB)
  • 0.03Lux/F2.0
  • H.265/H.264, 30fps@4M
  • 2.8mm Fixed lens
  • IR Distance 30m,Smart IR
  • IP67, IK10, DC12V
  • 36 Month Warranty

Antenna Type Dome
Brand Name Capture
Category Type IP Dome Cameras
Color Supported Color
Connectivity Technology Wired
Diameter 4.3"
Durability Vandal Resistant
Effective Camera Resolution 4 Megapixel
Environmentally Friendly Yes
Features IP67, 3D Digital Noise Reduction, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Highlight Compensation (HLC), HTTPS Encryption, Ingress Protection, Motion Detection, Region of Interest, Wide Dynamic Range, 3D Digital Noise Reduction, Ingress Protection, Back Light Compensation (BLC), Region of Interest, Auto Gain Control, Automatic White Balance, Highlight Compensation (HLC), HTTPS Encryption, Wide Dynamic Range, Vandal Resistant, Built-in IR LED, Motion Detection
Field of View HORIZONTAL: 93° VERTICAL: 53° DIAGONAL: 111°
Fixed Focal Length 2.80 mm
Form Factor Dome
HD Recording Yes
Height 4.3"
Image Sensor CMOS
Image Sensor Type CMOS
Impact Protection Rating IK10
Indoor/Outdoor Indoor/Outdoor
Ingress Protection Rating IP67
Input Voltage 12 V DC
Lens Included Yes
Lens Mount Type M12-mount
Lens Type Fixed
Limited Warranty 36 Month
Longest Shutter Speed 1/3 Second
Manufacturer Capture Camera
Model R2-4MPIPDME
Maximum Aperture f/2
Maximum Focal Length 2.80 mm
Maximum Frame Rate 30 fps
Maximum Operating Temperature 140°F (60°C), 140°F (60°C)
Maximum Video Resolution 2688 x 1520
Minimum Operating Temperature -40°F (-40°C), -40°F (-40°C)
Network (RJ-45) Yes
Night Vision Distance 98.43 ft
Operating Humidity 95%
Product Series HD
Product Type Network Camera
Remote Management Yes
Shortest Shutter Speed 1/100000 Second
Vendor Name Capture Video Surveillance
Video Formats H.264B, MJPEG, H.265, H.264, H.264B, H.265, MJPEG, H.264
Weight (Approximate) 12.35 oz
