Model: R2-4MPHDDME
Category: HD Over Coax Cameras, HDoC Dome Cameras
Brand: Capture Video Surveillance

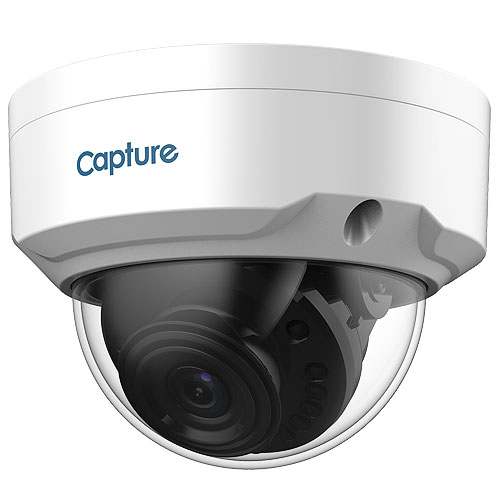

Dealer pricingThe R2-4MPHDDME HDCVI dome camera is constructed with a 2.8mm fixed lens. This 4MP camera is IP67 rated and uses existing cabling infrastructure for a default HDCVI signal with a switchable output option to other multi formats (AHD, TVI, CVBS). The multi-language OSD provides structural flexibility and high performance making this camera an ideal choice for numerous indoor/outdoor applications such as commercial applications, home or office use as well as monitoring hallways, unattended storage areas & various other installation applications
Main Features:
| Analog Video Signal Format | TVI, CVI, CVBS, AHD, AHD, CVBS, CVI, HDCVI, TVI, HDCVI |
| Antenna Type | Dome |
| Brand Name | Capture |
| Category Type | HDoC Dome Cameras |
| Color Supported | Color |
| Connectivity Technology | Wired |
| Device Supported | Surveillance Camera |
| Diameter | 4.3" |
| Durability | Vandal Resistant |
| Effective Camera Resolution | 4 Megapixel |
| Environmentally Friendly | Yes |
| Features | Auto Gain Control, Built-in OSD Function, Vandal Resistant, Ingress Protection, Back Light Compensation (BLC), 2D Noise Reduction, Built-in IR LED, Automatic White Balance, Highlight Compensation (HLC), Day/Night, IP67, 2D Noise Reduction, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Built-in OSD Function, Day/Night, Digital Wide Dynamic Range (D-WDR), Highlight Compensation (HLC), Ingress Protection |
| Field of View | 125° X 105° X 56° (DIAGONAL X HORIZONTAL X VERTICAL) |
| Fixed Focal Length | 2.80 mm |
| Form Factor | Dome |
| HD Recording | Yes |
| Height | 4.3" |
| Image Sensor | CMOS |
| Image Sensor Type | CMOS |
| Impact Protection Rating | IK10 |
| Indoor/Outdoor | Indoor/Outdoor |
| Ingress Protection Rating | IP67 |
| Input Voltage | 12 V DC |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Lens Type | Fixed |
| Limited Warranty | 36 Month |
| Longest Shutter Speed | 1/25 Second |
| Manufacturer | Capture Camera |
| Model | R2-4MPHDDME |
| Maximum Aperture | f/2 |
| Maximum Focal Length | 2.80 mm |
| Maximum Frame Rate | 30 fps |
| Maximum Operating Temperature | 140°F (60°C), 140°F (60°C) |
| Maximum Video Resolution | 2560 x 1440 |
| Minimum Operating Temperature | -40°F (-40°C), -40°F (-40°C) |
| Night Vision Distance | 98.43 ft |
| Operating Humidity | 95% |
| Product Series | HD |
| Product Type | Surveillance Camera |
| Shortest Shutter Speed | 1/100000 Second |
| Vendor Name | Capture Video Surveillance |
| Video Signal Format | NTSC, PAL, NTSC, PAL |
| Weight (Approximate) | 10.93 oz |
