Model: R2-4MPHDMODM
Category: HD Over Coax Cameras, HDoC Dome Cameras
Brand: Capture Video Surveillance

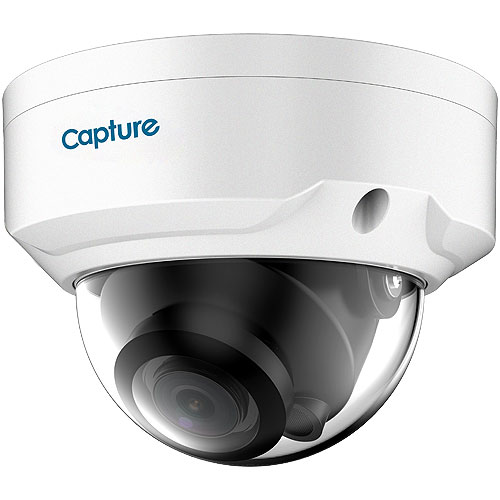

Dealer pricingThe R2-4MPHDMODM HDCVI dome camera is constructed with a 2.7~12mm motorized lens. This 4MP camera is IP67 rated and uses existing cabling infrastructure for a default HDCVI signal with a switchable output option to other multi formats (AHD, TVI, CVBS).
The multi-language OSD provides structural flexibility and high performance making this camera an ideal choice for numerous indoor/outdoor applications such as commercial applications, home or office use as well as monitoring hallways, unattended storage areas & various other installation applications
Main Features
| Analog Video Signal Format | AHD, CVBS, CVI, AHD, CVBS, CVI, HDCVI, TVI, TVI, HDCVI |
| Antenna Type | Dome |
| Brand Name | Capture |
| Category Type | HDoC Dome Cameras |
| Color Supported | Color |
| Connectivity Technology | Wired |
| Device Supported | Surveillance Camera |
| Diameter | 4.8" |
| Durability | Vandal Resistant |
| Effective Camera Resolution | 4 Megapixel |
| Environmentally Friendly | Yes |
| Features | IP67, Day/Night, Auto Gain Control, Back Light Compensation (BLC), Built-in IR LED, Vandal Resistant, Ingress Protection, Built-in OSD Function, 2D Noise Reduction, Automatic White Balance, 2D Noise Reduction, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Built-in OSD Function, Day/Night, Digital Wide Dynamic Range (D-WDR), Highlight Compensation (HLC), Ingress Protection, Highlight Compensation (HLC) |
| Field of View | DIAGONAL: 38°- 127° HORIZONTAL: 33°- 106° VERTICAL: 19°- 56° |
| Form Factor | Dome |
| HD Recording | Yes |
| Height | 4.8" |
| Image Sensor | CMOS |
| Image Sensor Type | CMOS |
| Impact Protection Rating | IK10 |
| Indoor/Outdoor | Indoor/Outdoor |
| Ingress Protection Rating | IP67 |
| Input Voltage | 12 V DC |
| Lens Included | Yes |
| Lens Mount Type | Φ14, Φ14 |
| Lens Type | Varifocal |
| Limited Warranty | 36 Month |
| Longest Shutter Speed | 1/25 Second |
| Manufacturer | Capture Camera |
| Model | R2-4MPHDMODM |
| Maximum Aperture | f/1.7 |
| Maximum Focal Length | 12 mm |
| Maximum Frame Rate | 30 fps |
| Maximum Operating Temperature | 140°F (60°C), 140°F (60°C) |
| Maximum Video Resolution | 2560 x 1440 |
| Minimum Focal Length | 2.70 mm |
| Minimum Operating Temperature | -22°F (-30°C), -22°F (-30°C) |
| Night Vision Distance | 98.43 ft |
| Operating Humidity | 95% |
| Optical Zoom | 4.4x |
| Product Series | HD |
| Product Type | Surveillance Camera |
| Shortest Shutter Speed | 1/100000 Second |
| Transmitter Weight (Approximate) | 15.52 oz |
| Vendor Name | Capture Video Surveillance |
| Video Signal Format | NTSC, PAL, NTSC, PAL |
| Weight (Approximate) | 15.52 oz |
