Beale VCRI Audio Control Device
Beale VCRI Audio Control Device

Beale VCRI Audio Control Device

Model: VCRI

Category: Volume Control, 8 Ohm Volume Control

Brand: Beale Street Audio

Dealer pricing

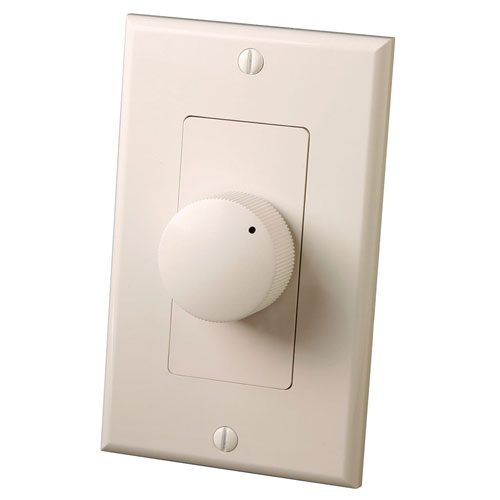

The VCRI is a rotary knob automatic impedance matching volume control. That means multiple volume controls and speaker pairs can be connected to a single, appropriately powered amplifier. It also means there are no impedance tables, jumpers or switch settings.

Features

  • Peak RMS Power Rating– 350W/ch
  • Continuous RMS Power– 105W/ch
  • Frequency Response– DC to 500 kHz +/- 0.1dB
  • Mounting Depth– 1.8″ (45mm)
  • Electrical Junction Box– Fits Single Gang Box
  • Speaker Impedance– 2-16 Ohms (single or multiple speakers)
  • Connection Removable Screw Terminals
  • Includes– White and Almond Decora Inserts

Brand Name Beale
Category Type 8 Ohm Volume Control
Form Factor Gang Box Mount
Manufacturer Beale Street Audio
Model VCRI
Product Type Audio Control Device
Vendor Name Beale Street Audio
