Beale IPLCR4-MB 2-way In-wall, In-ceiling Speaker - 5 W RMS
Beale IPLCR4-MB 2-way In-wall, In-ceiling Speaker - 5 W RMS

Beale IPLCR4-MB 2-way In-wall, In-ceiling Speaker - 5 W RMS

Model: IPLCR4-MB

Category: Speakers, In-Wall Speakers

Brand: Beale Street Audio

Dealer pricing

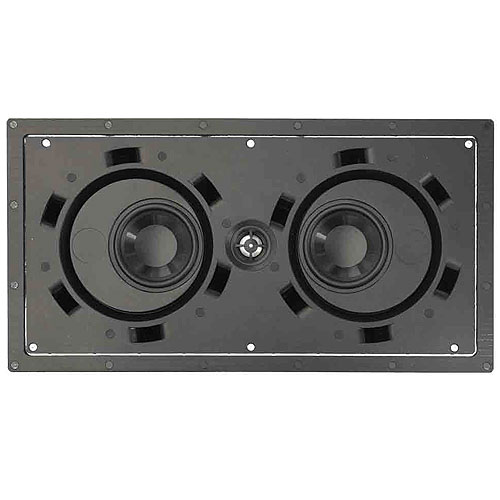

Dual 4″ In-wall LCR 2-way pancake powered by Sonic Vortex®

Our Sonic Vortex® technology generates rich, deep bass and effortless clarity from what most people would call a ‘back box’, but is not. It is actually a compact, integrated tuned enclosure.

This patented technology is a ‘twist’ on Ported Transmission Line design, that optimizes air movement to produce astonishing sound. The enclosure also keeps sound from bleeding to other rooms while adding 6 to 9dB boost in mid-lower bass.

Features

  • Speaker Type– In-Wall 2-Way
  • Woofer– Dual 4″ Fluted Injected Polypropylene
  • Tweeter– 1″ Aluminum Dome
  • Frequency– 62 Hz – 24 kHz
  • Sensitivity– 92db
  • Butyl Rubber Surround
  • Sonic Vortex® Ported Transmission Line
  • Magnetic Bezelless Grille– White; paintable
  • Impedance– 6Ω
  • Connector Type– Gold Spring Push Terminal
  • Depth– 2.82″ (71.5mm)
  • Speaker Weight– 6 lbs (2.72kg)
  • Cutout– 18.31″ H x 8.74″ (465mm x 222mm)
  • Grille Dimensions– 19.62″ H x 10.06″ W (498mm x 255.4mm)
  • Frequency/Crossover Setting– Full range only
  • Power Handling– 5-120W
  • EZBracket Size– Does not apply
  • Highlights– Ultra Shallow Depth Pancake Less than 3″ Depth (71.5mm)

Brand Name Beale
Category Type In-Wall Speakers
Compatible Door Frame Type Aluminum
Crossover Type 2-way
Depth 1", 2.8"
Driver Type 4" Fluted Injected Poly Woofer, 1" Aluminum Tweeter
Form Factor In-ceiling, In-wall, In-wall, In-ceiling
Height 18.3"
Impedance 6 Ohm
Limited Warranty Lifetime
Manufacturer Beale Street Audio
Model IPLCR4-MB
Maximum Frequency Response 24 kHz
Maximum Operating Range 4"
Maximum Output Power 120 W
Minimum Frequency Response 62 Hz
PMPO Output Power 120 W
Power Consumption 5 W
Product Type Speaker
Receiver Depth 2.82"
RMS Output Power 5 W
Sensitivity 92 dB
Vendor Name Beale Street Audio
Weight (Approximate) 6 lb
Width 8.7"
Woofer Diameter 4"
Woofer Driver Material Fluted Injected Poly
