Model: TIC801
Category: In-Ceiling & In-Wall Speakers
Brand: Beale Street Audio

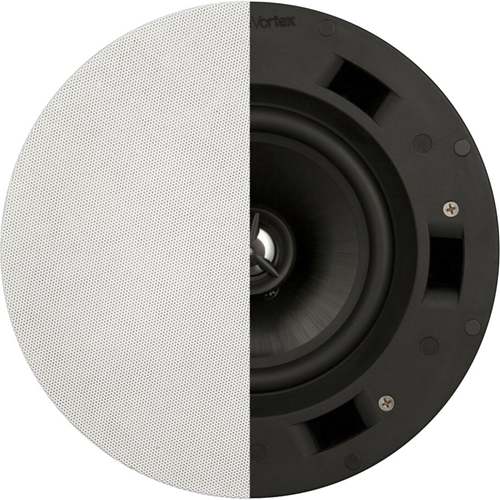

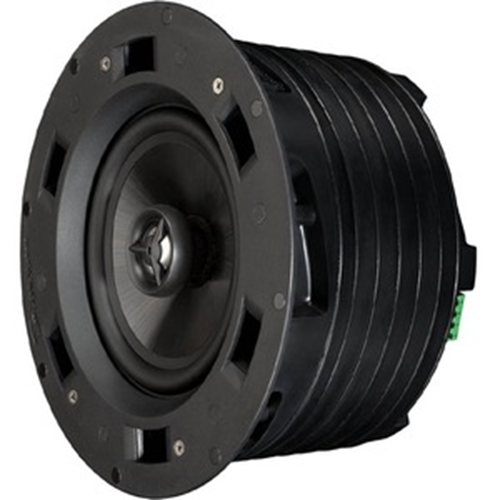

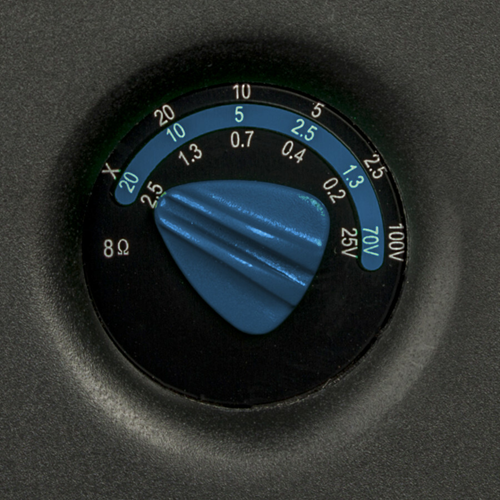

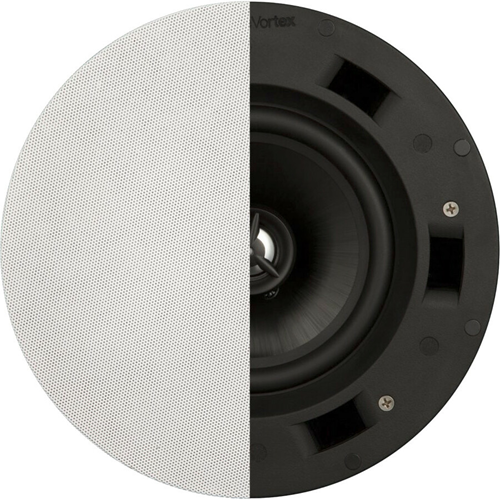

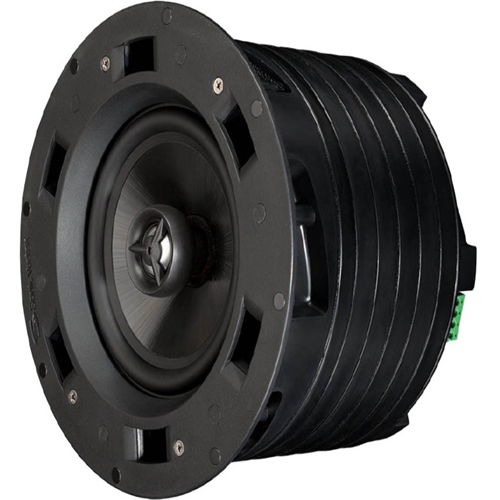

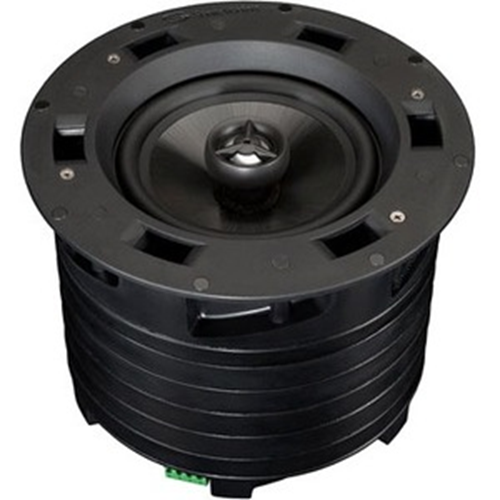

Dealer pricing8" 25/70/100V IN CEILING 2-WAY POWERED BY SONIC VORTEX®
Performs great as a combo audio speaker and paging speaker. Our Sonic Vortex® technology generates rich, deep bass and effortless clarity from what most people would call a 'back box', but is not. It is actually a compact, integrated tuned enclosure. This patented technology is a 'twist' on Ported Transmission Line design, that optimizes air movement to produce astonishing sound. The enclosure also keeps sound from bleeding to other rooms while adding 6 to 9dB boost in mid-lower bass. Designed to play in full range mode only.
| Brand Name | Beale |
| Category Type | In-Ceiling & In-Wall Speakers |
| Compatible Door Frame Type | Aluminum |
| Crossover Type | 2-way |
| Cutout Diameter | 10.30" |
| Depth | 1", 8", 11.3", 8.6" |
| Diameter | 11.3" |
| Driver Type | 1" Aluminum Tweeter |
| Form Factor | In-ceiling |
| Height | 8.6" |
| Impedance | 8 Ohm |
| Limited Warranty | Lifetime |
| Manufacturer | Beale Street Audio |
| Model | TIC801 |
| Maximum Frequency Response | 20 kHz |
| Maximum Output Power | 120 W |
| Minimum Frequency Response | 42 Hz |
| PMPO Output Power | 120 W |
| Power Consumption | 5 W |
| Product Type | Speaker |
| RMS Output Power | 5 W |
| Sensitivity | 91 dB |
| Shipping Height | 8.60" |
| Vendor Name | Beale Street Audio |
| Weight (Approximate) | 7.10 lb |
| Woofer Diameter | 8" |
| Woofer Driver Material | Ribbed Injected Polypropylene |
