Wilson 4G Omni-Directional Building Cellular Antenna (75 ohm)
Wilson 4G Omni-Directional Building Cellular Antenna (75 ohm)

Wilson 4G Omni-Directional Building Cellular Antenna (75 ohm)

Model: 304421

Category: Cellular Boosters

Brand: Wilson Electronics

Dealer pricing

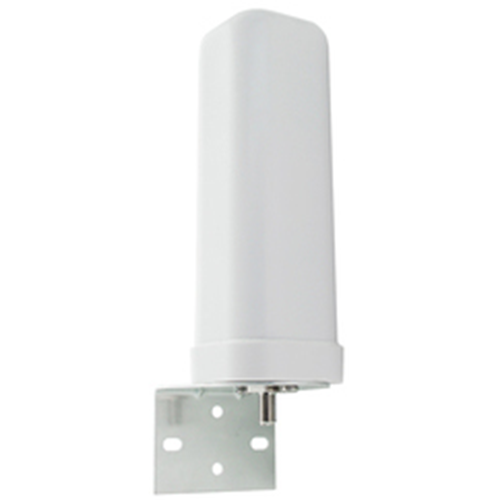

This 7.5" tall, white 4G Outdoor Building Cellular Antenna is wind-rated to 130MPH. It is a 75-Ohm Omni-Directional antenna with a 90 degree mounting plate for poles up to 1.5" diameter; wall hardware is also included. Antenna features up to +4.0dB gain on all cellular frequencies.

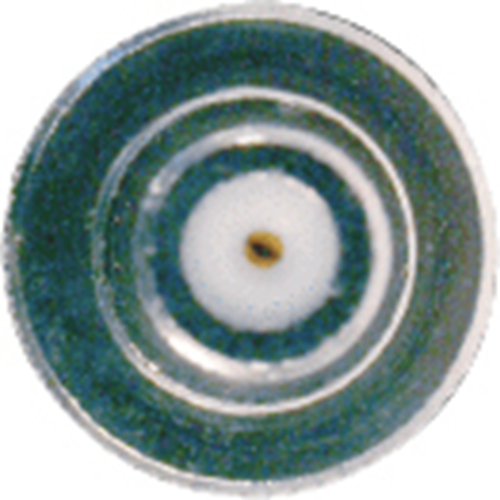

Features an F-Female coax connector and works with all weBoost and WilsonPro 75-Ohm Residential and Commercial Cellular Boosters. Vertical polarized, this omni antenna is waterproof with operating temperature of -40 to +149 degrees F. Made from UV-resistant ABS. Backed by a two-year warranty.
Main Features
  • High gain 4G cellular signal output
  • Multi-mount bracket for mast or wall
  • Compact, low visual impact
  • Outdoor rated waterproof
  • Easy install at home or office
  • Connects to building 75 Ohm cell phone signal boosters and modems
  • 2 year warranty
  • Up tp +4.0dB gain

Antenna Gain 4 dB
Application/Usage Outdoor, Cellular Network, Cellular Network, Outdoor
Brand Name Wilson
Connector Type F Connector
Depth 0.10"
Directivity Omni-directional
Environmental Certification RoHS
Environmentally Friendly Yes
Form Factor Pole/Wall
Height 0.30"
Limited Warranty 2 Year
Manufacturer Wilson Electronics
Model 304421
Operating Frequency Range 1710 MHz to 1800 MHz, 1710 MHz to 1800 MHz, 1850 MHz to 1990 MHz, 2110 MHz to 2170 MHz, 700 MHz to 800 MHz, 824 MHz to 894 MHz, 880 MHz to 960 MHz, 880 MHz to 960 MHz, 824 MHz to 894 MHz, 700 MHz to 800 MHz, 2110 MHz to 2170 MHz, 1850 MHz to 1990 MHz
Product Type Antenna
Vendor Name Wilson Electronics
Width 0.10"
