WilsonPro Antenna

Model: 314406

Category: Cellular Boosters

Brand: Wilson Electronics

Dealer pricing

Description
Specifications

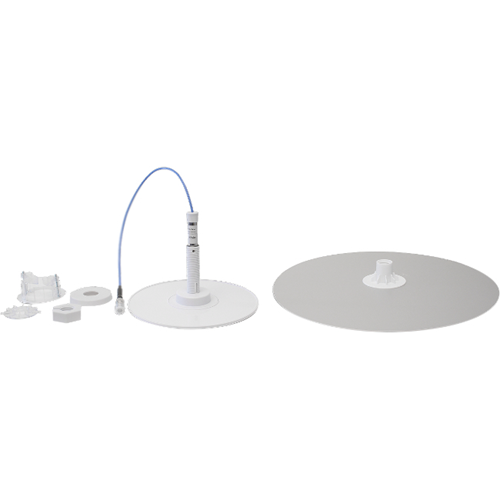

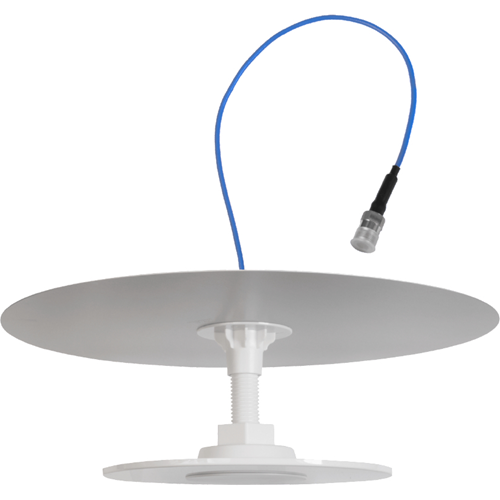

Building cellular antenna with reflector, 16.2 x 19.7 in., white, low-profile, 600-2700 MHz, 50 Ohm, Omni-Directional, Ceiling mount, 10 in. low loss plenum rated pigtail cable with N-Female connector.

Main Features

Eases up the installation procedure thanks to its 360-degree horizontal pattern
With its ceiling mount feature, it provides maximum performance and minimum visibility
Operates at 7 dB gain
Widely used in cellular network

Antenna Gain	7 dB
Application/Usage	Indoor, Cellular Network, Indoor, Cellular Network
Brand Name	WilsonPro
Color	White
Connector Type	N-Type
Directivity	Omni-directional
Environmental Certification	RoHS
Environmentally Friendly	Yes
Form Factor	Ceiling Mount
Frequency Band Type	UHF
Limited Warranty	3 Year
Manufacturer	Wilson Electronics
Model	314406
Operating Frequency Range	1695 MHz to 2200 MHz, 2300 MHz to 2700 MHz, 608 MHz to 960 MHz, 1695 MHz to 2200 MHz, 2300 MHz to 2700 MHz, 608 MHz to 960 MHz
Product Type	Antenna
Vendor Name	Wilson Electronics
