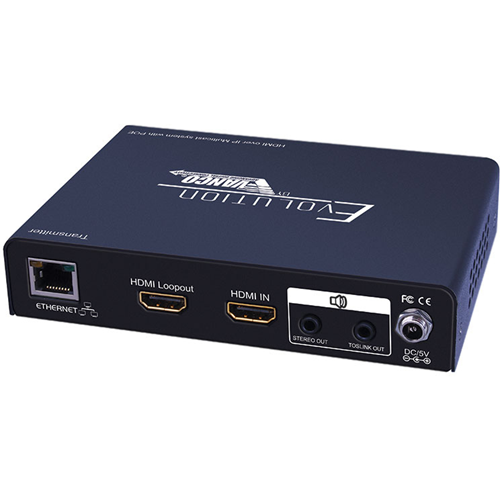

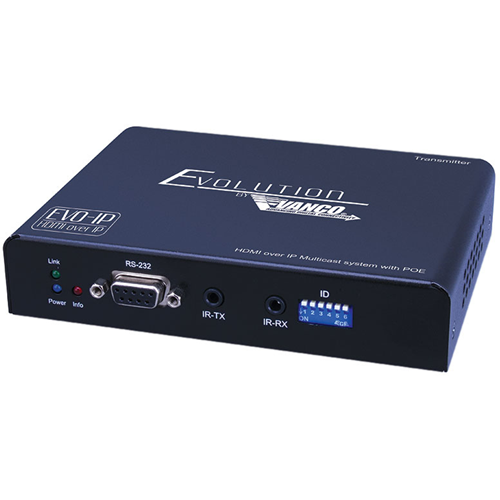

Vanco EVO-IP Transmitter

Model: EVOIPTX1

Category: Pro AV Solutions by Venue, HDMI Extenders, Commercial Video, Corporate & Telework, Retail & Hospitality

Brand: Vanco

Dealer pricing

Main Features

Supports4K@60Hz, 4:4:4 chroma
System can support over 1000 transmitters and receivers
HDR10 and Dolby Vision compatible
Dolby/DTS/PCM audio formats supported
HDCP 2.2/1.4
POE or can be powered using provided power supply
Manual dip switch configurable for a truly IP-Less installation
Easy GUI automatically detects new devices in the system
Customizable labels and names of sources and displays
Setup through the GUI can be done without a computer even being on site
Analog and Digital audio breakouts on TX and RX
HDMI Loop-out for cascading or monitoring
Upscale to4K@30Hzor downscale to 720p
EDID preset/learning
Video Wall mode supports configurations up to 25 displays
OSD mode to display text, pictures, or logos on the screen
Great for digital signage!
Connects to the cloud to schedule events or to troubleshoot a situation remotely
Able to be controlled with Alexa enabled products

Brand Name	Vanco
Category Type	HDMI Extenders, Retail & Hospitality, Corporate & Telework
Connectivity Technology	Wired
Environmentally Friendly	Yes
Form Factor	Wall Mountable
Graphics Modes	4K
HDMI In	Yes
HDMI Out	Yes
Limited Warranty	2 Year
Manufacturer	Vanco International, Inc
Model	EVOIPTX1
Maximum Operating Distance	330 ft
Maximum Wiring Distance	330 ft
Media Type Supported	Twisted Pair
Network (RJ-45)	Yes
Number of HDMI Inputs	1
Number of HDMI Outputs	1
Number of Input Devices Supported	1
Number of Network (RJ-45) Ports	1
Packaged Quantity	1
Product Line	Evolution
Product Type	Video Extender Transmitter
Serial Port	Yes
Twisted Pair Cable Standard	Category 6
Vendor Name	Vanco
