Vanco HDMI Extender over Single Cat5e/6 Cable with IR

Model: 280501

Category: Video Accessories, HDMI Extenders

Brand: Vanco

Dealer pricing

Main Features

Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat5e/6 cable
Transmission Range: Extends 1080p resolution up to 196ft/60m over a single Cat5e or Cat6 cable

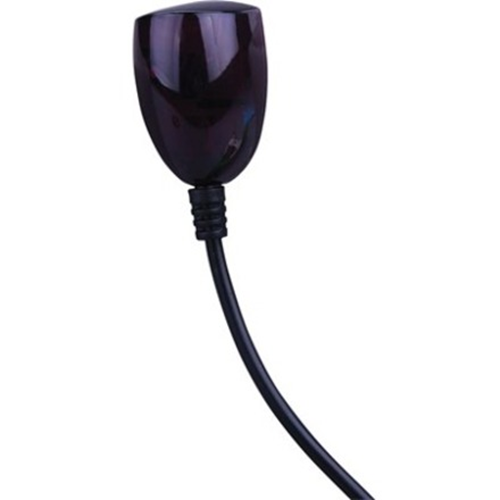

IR system allows for control of source at display location (IR accessories included)
Auto EQ distance for perfect transmission and reception of HDMI signals by just a push of a button
Works with HDMI and HDCP compliant devices
Supports up to 1080p High Definition resolution
Power Supply: 5V, 1A DC
Dimensions: 1.875” W x 1” H x 3.25” D

Brand Name	Vanco
Category Type	HDMI Extenders
Connectivity Technology	Wired
Depth	1"
Environmentally Friendly	Yes
Graphics Modes	Full HD
HDMI In	Yes
HDMI Out	Yes
Manufacturer	Vanco International, Inc
Model	280501
Maximum Operating Distance	196 ft
Maximum Video Resolution	1920 x 1080
Media Type Supported	Twisted Pair
Network (RJ-45)	Yes
Number of +12V Rails	2
Number of HDMI Inputs	1
Number of HDMI Outputs	1
Number of Input Devices Supported	1
Number of Network (RJ-45) Ports	2
Number of Output Devices Supported	1
Packaged Quantity	1

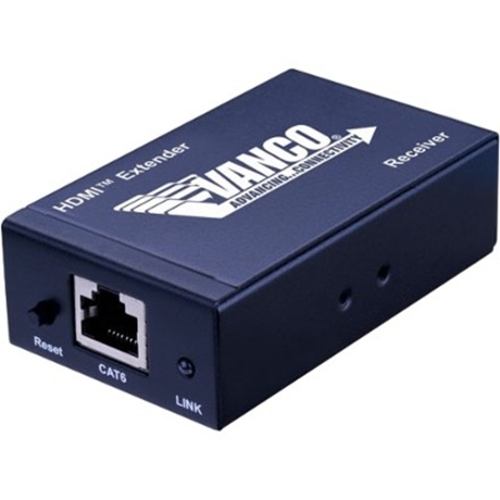

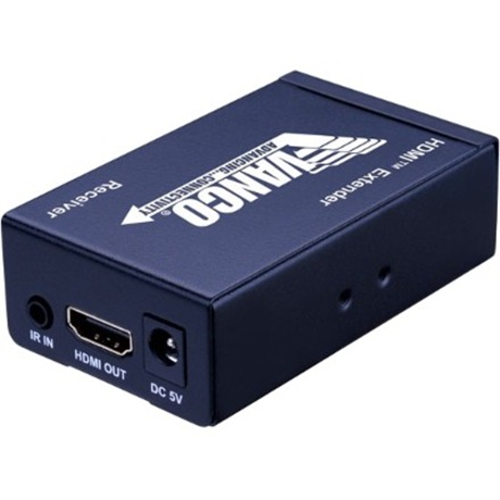

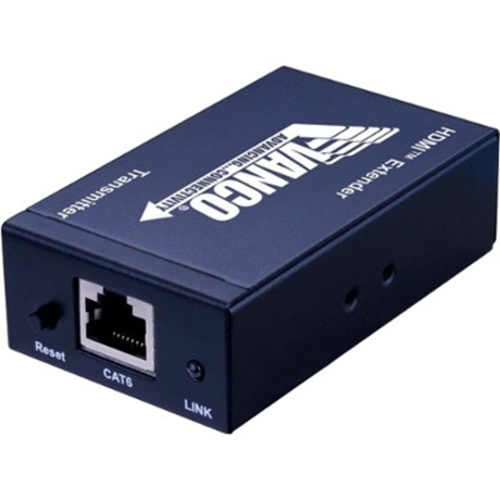

Product Type	Video Extender Transmitter/Receiver
Receiver Depth	3.25"
Receiver Height	1"
Receiver Width	1.88"
Transmitter Depth	3.25"
Transmitter Height	1"
Transmitter Width	1.88"
Twisted Pair Cable Standard	Category 6
Vendor Name	Vanco
