Vanco VGA Over Cat5e/Cat6 Extender with Audio (500 ft)
Vanco VGA Over Cat5e/Cat6 Extender with Audio (500 ft)

Vanco VGA Over Cat5e/Cat6 Extender with Audio (500 ft)

Model: 280544

Category: Pro AV Solutions by Venue, HDMI Extenders, Commercial Video, Corporate & Telework, Retail & Hospitality

Brand: Vanco

Dealer pricing

Main Features

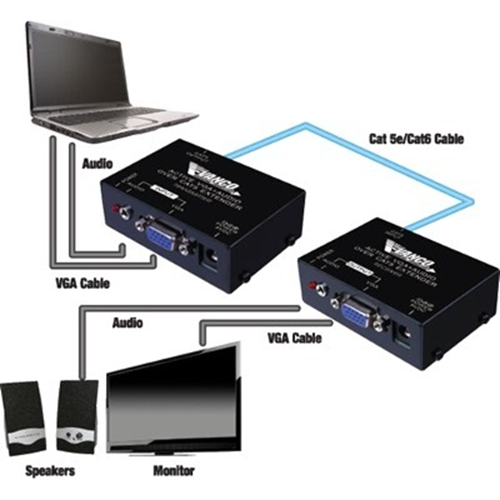

  • Allows VGA and Audio Signals to be Transmitted using one Cat5e or Cat6 cable
  • Transmission Range up to 500 ft.
  • Built-in equalizer for signal boosting
  • Supports computer resolutions UXGA (1600×1200) SXGA (1280×1024)- XGA (1024×768)- SVGA (800×600) and VGA (640×480)
  • Supports up to 60 meters (198 ft) with resolution 1600×1200
  • Supports up to 80 meters (264 ft) with resolution 1280×1024
  • Supports up to 100 meters (330 ft) with resolution 1024×768
  • Supports up to 120 meters (396 ft) with resolution 800×600
  • Supports up to 150 meters (500 ft) with resolution 640×480
  • Power Supply: (2) 5V DC- UL Listed
  • Dimensions: 2.88” W x 1”H x 2”D

Brand Name Vanco
Category Type HDMI Extenders, Retail & Hospitality, Corporate & Telework
Depth 2", 1"
Environmentally Friendly Yes
Height 2.9", 1"
Limited Warranty 1 Year
Manufacturer Vanco International, Inc
Model 280544
Maximum Extended Range 500 ft
Network (RJ-45) Yes
Product Type Audio/Video Extender
Vendor Name Vanco
Width 2.9", 2"
