Triplett 3399 Accessory Kit
Triplett 3399 Accessory Kit

Triplett 3399 Accessory Kit

Model: 3399

Category: Test Equipment, HDMI / COAX / LV Test Equipment

Brand: Triplett Test Equipment & Tool

Dealer pricing

The Triplett 3399 FOX 2 and HOUND 3 wire tracing kit consists of a premium FOX 2 Tone Generator (Toner) and a newly designed HOUND 3 Inductive Amplifier (Probe). The FOX 2 is a battery operated handheld lightweight multi-function Toner that generates multiple tones, performs some basic telephone line tests (loop mA and line polarity), provides a visual and audible continuity test, and incorporates Triplett’s True Trace and TripLatch tests. The HOUND 3 is a battery operated handheld lightweight Probe, with a thumbwheel Sensitivity control and Signal Strength indicator LED. It improves on previous designs (the HOUND and HOUND 2) with built-in LED illuminators, a bandpass filter, an earphone jack, and an easy access battery cover. An included convenient carrying case (with belt loop attachment) provides ease of use and protective storage for the FOX 2 and HOUND 3. 1 year warranty.

Main Features

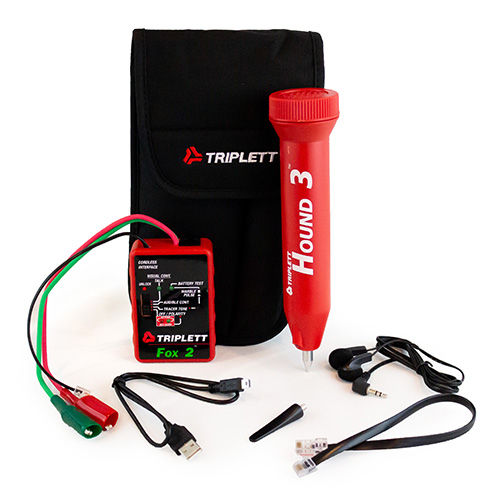

  • The Fox & Hound wire tracing kit consists of a versatile Fox 2 Tone Generator (Toner) and a high performance Hound 3 Inductive Amplifier (Probe). This kit includes Fox 2, Hound 3, RJ-11 to RJ-45 adapter, plastic duck bill, metal duck bill, headphones, and a sturdy weatherproof carry case. 3 year warranty.

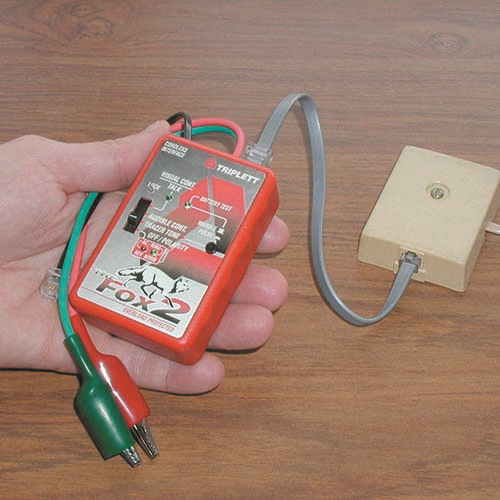

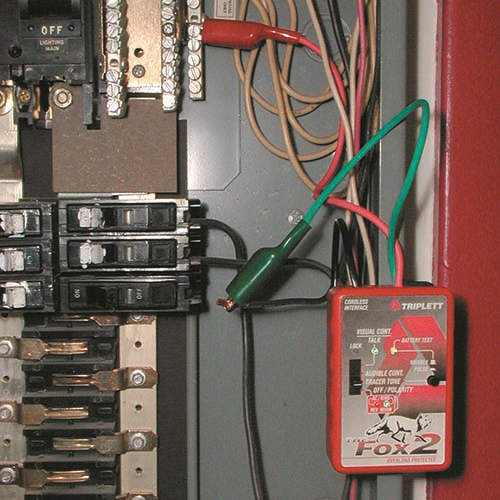

  • The Fox 2 is a battery operated handheld multi-function Toner that generates multiple tones (Pulse or Warble), performs some basic telephone line tests (loop mA, line polarity, and ringing voltage), provides a visual and audible continuity test, and integrates our own True Trace and TripLatch tests while providing overload protection up to 12 VAC.

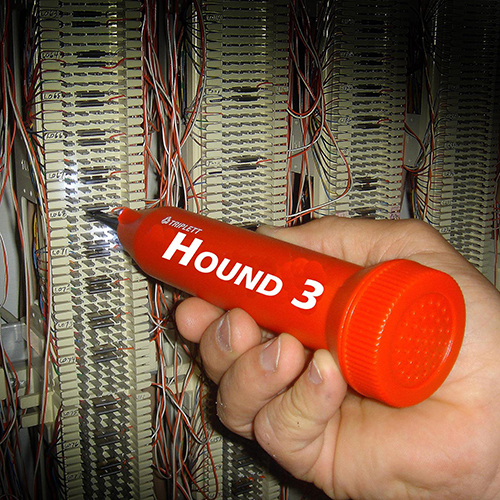

  • The Hound 3 is a battery operated handheld lightweight Probe, with a thumbwheel Sensitivity control and Signal Strength indicator LED. It improves on previous designs with built-in LED headlights to illuminate dark areas and reduce fluorescent light noise, a bandpass filter to suppress unwanted frequencies, an earphone jack for noisy or quiet work areas, and an easy access battery cover.
  • This Wire tracing kit a lightweight easy to use kit, constructed with high quality materials. Portable design allows you to trace wires whenever needed. Find non-energized wires in walls, ceilings, and floors. Inductive tracer with two probes indicates magnetic fields with audio and visual signals. Tracer filter helps suppress 6 Hz and high-frequency noise. Tone generator has three tones for guiding tracer to wires.

Brand Name Triplett
Category Type HDMI / COAX / LV Test Equipment
Limited Warranty 1 Year
Model 3399
Product Type Accessory Kit
Vendor Name Triplett Test Equipment & Tool
