Triplett CamView IP Pro 8070

Model: 8070

Category: Test Equipment, Camera Test Equipment

Brand: Triplett Test Equipment & Tool

Dealer pricing

The Triplett CamView IP Pro (87) IP Security Camera Tester works with both Standard Definition analog NTSC/PAL camera systems, High Definition Analog (AHD 2.), and ONVIF conformant IP (Ethernet) camera systems. In addition, it provides an RS485 port for PTZ control of analog PTZ cameras and can provide POE for operating IP cameras, or 12VDC (not to exceed 2A) to power analog cameras. The IP Camera Tester allows you to perform Ethernet and network tests, capture video (snapshots and video recording), playback video, generate video test patterns for monitor checking and perform analog camera testing. It also allows you to check microphone/audio sources and even provides a bright flashlight function. Both recorded images and video can be transferred to PCs or other devices via the USB port connection. It works with ONVIF-enabled IP cameras; has a built-in DHCP server so you can set up IP cameras before the network is even wired; provides PoE and external power for the camera (up to 12V, 15W); includes a Code Book so you can save usernames and passwords of the cameras you frequently access/maintain; features a full, flip-out keyboard for quickly entering information; capture images, videos, and camera settings so you can crete reports; has TDR cable testing and network testing. Comes complete with Lanyard, Rechargeable Battery,Tool Bag with Shoulder Strap, POE Power Injector, Network Cable, BNC Cable, RS485 Cable, 12V Power Output Cable, Audio Cable, USB Cable,

Main Features
  • IP (ONVIF only), H.264, and Analog SD, AHD 2., and NTSC/PAL security camera tester
  • Provides an RS485 port for PTZ control of analog PTZ cameras
  • POE for IP cameras or 12VDC to analog cameras
  • Ethernet and network tests; Capture snapshots and video recordings; Generate analog video test patterns for monitor checking

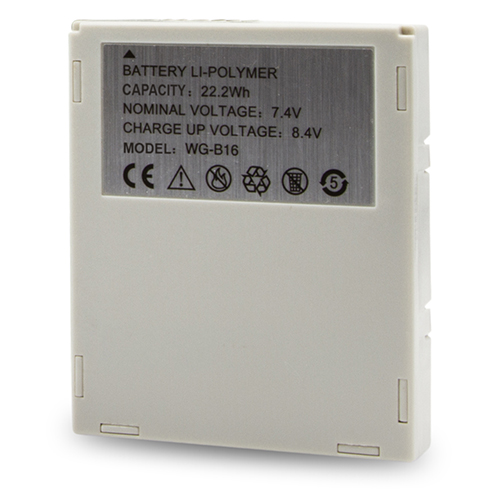

Battery Chemistry Lithium Ion (Li-Ion) Polymer
Battery Rechargeable Yes
Battery Size Supported 7.4V
Brand Name Triplett Test Equipment & Tool, Triplett
Category Type Camera Test Equipment
Depth 1.5"
Device Function PoE Testing, Analog Camera Testing, IP Camera Testing, IP Scan, PTZ Control, Network Testing, Multiple Cable Testing, LAN Cable Testing
Ethernet Technology Gigabit Ethernet
Height 7.5"
Input Voltage 12 V DC
Model TRI-8070
Media Type Supported Twisted Pair
Network Standard 10/100/1000Base-TX
Number of Network (RJ-45) Ports 2
PoE (RJ-45) Port Yes
Product Line CamView IP Pro
Product Type CCTV Test Meter
Serial Port Yes
USB Yes
Vendor Name Triplett Test Equipment & Tool
Weight (Approximate) 3.53 lb
Width 4.4"
Wireless LAN No
