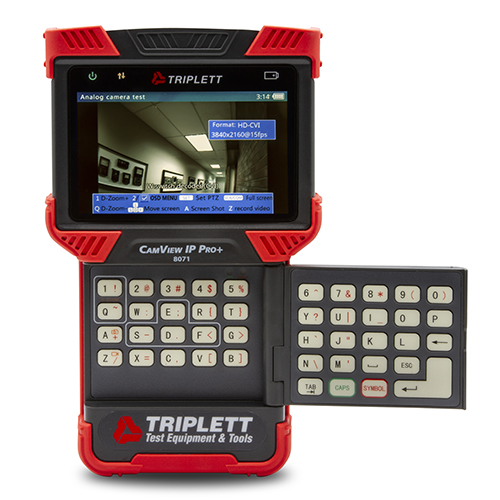

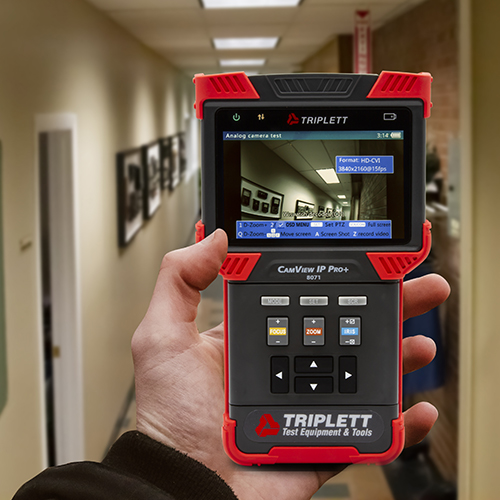

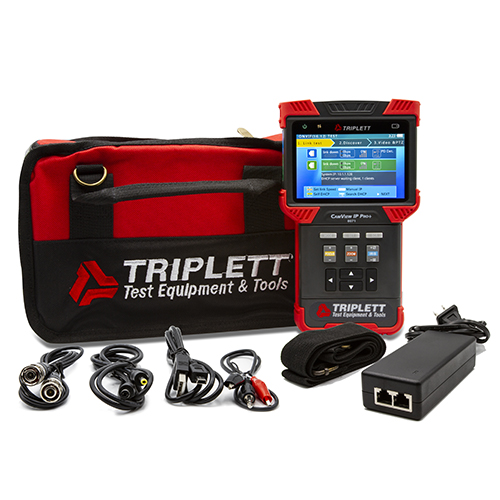

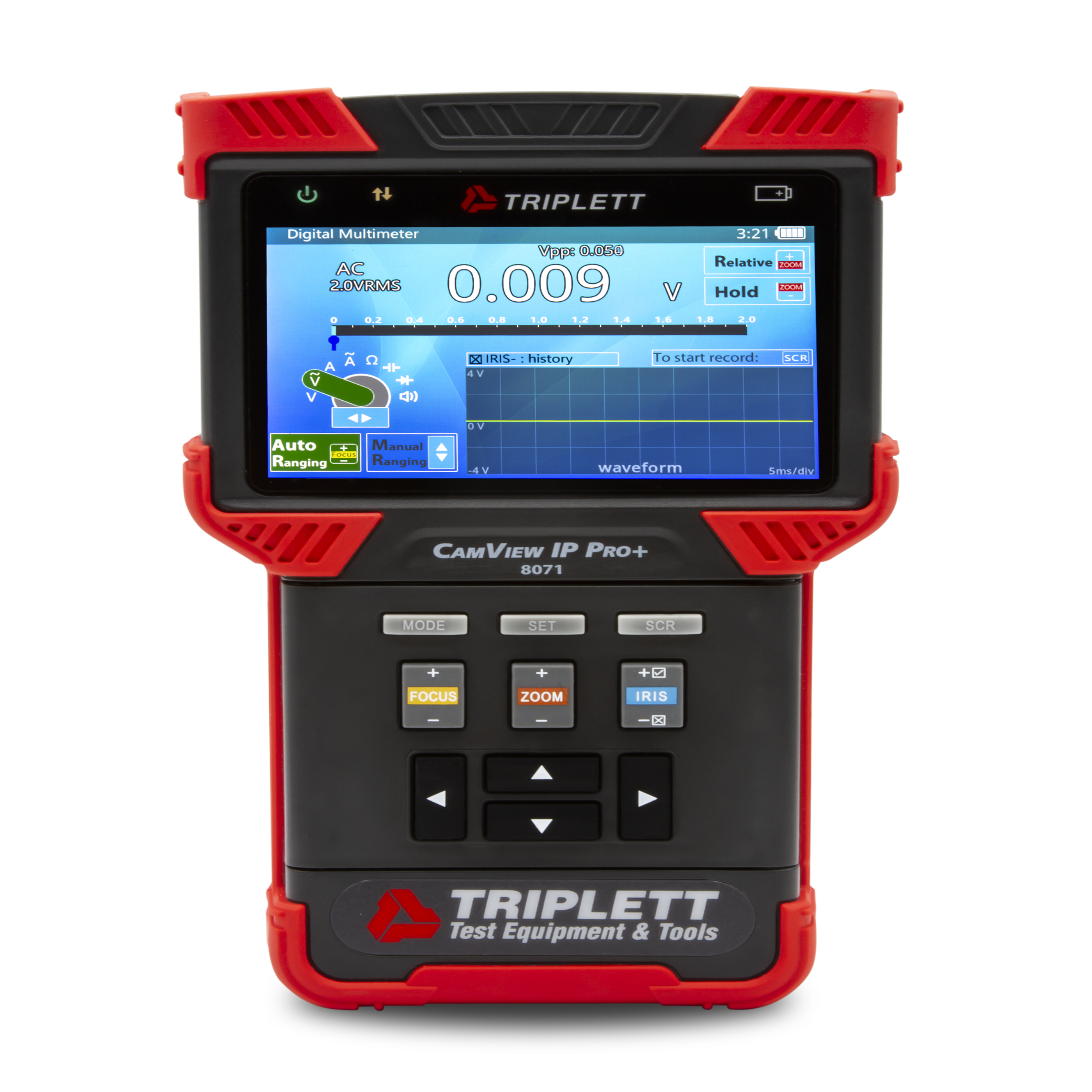

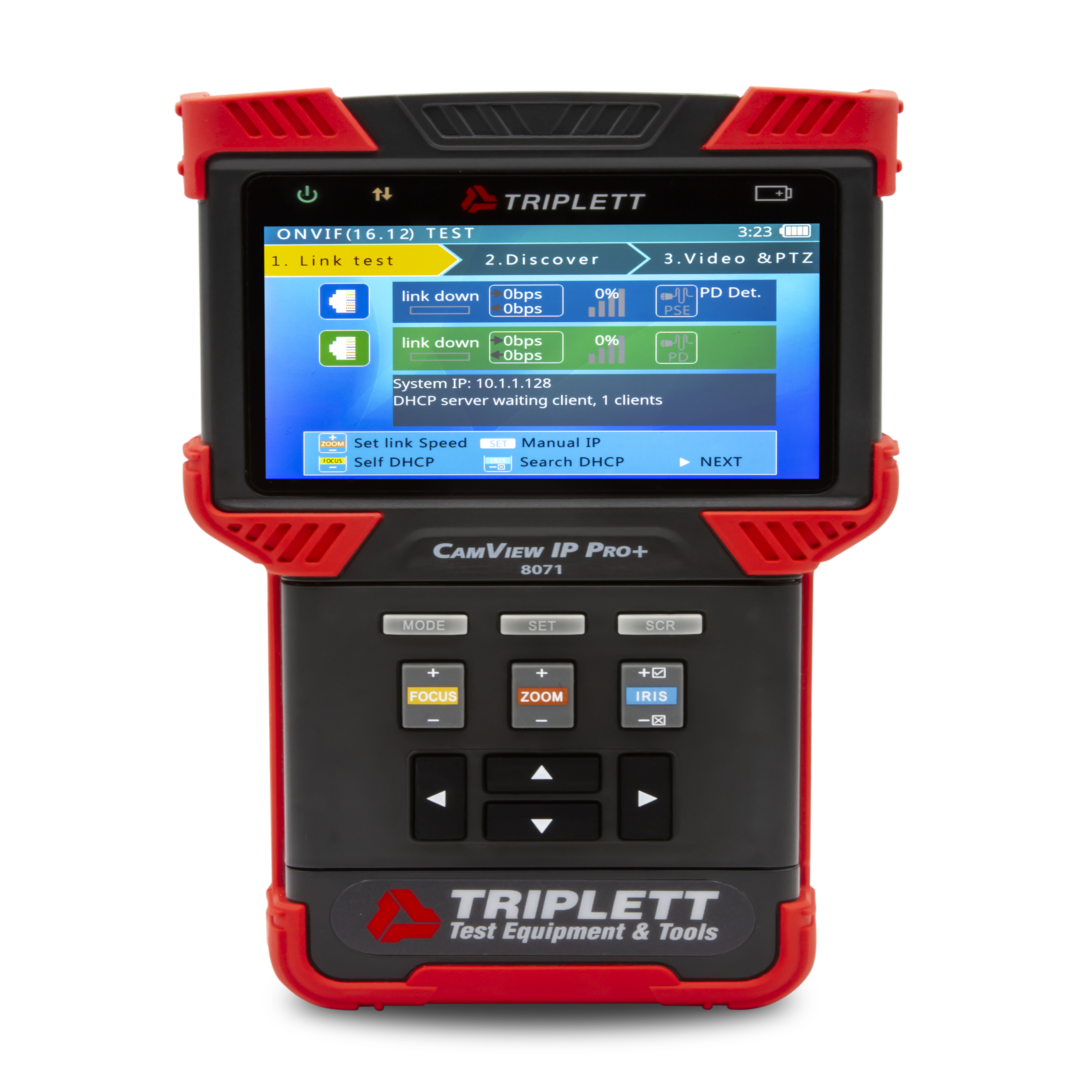

Triplett CamView IP Pro+ 8071
Triplett CamView IP Pro+ 8071

Triplett CamView IP Pro+ 8071

Model: 8071

Category: Test Equipment, Camera Test Equipment

Brand: Triplett Test Equipment & Tool

Dealer pricing

The CamView IP Pro, Pro+, and Pro-D are designed to facilitate the installation and maintenance of surveillance video equipment. The Tester works with both Standard Definition analog NTSC/PAL camera systems, High Definition Analog, and ONVIF conformant IP (Ethernet) camera systems. Also, the testers provide an RS485 port for PTZ control of analog PTZ cameras and can provide POE for operating IP cameras, or 12VDC (not to exceed 2A) to power analog cameras. The IP Camera Tester allows you to perform Ethernet and network tests, capture video (snapshots and video recording), playback video, generate video test patterns for monitor checking and perform analog camera testing. They also allow you to check microphone/audio sources and even provide a bright flashlight function. Both recorded images and video can be transferred to PCs or other devices via the USB port connection.

Main Features
  • IP (H.265) and Analog (AHD 2.0, HD-TVI 3.0, HD-CVI 3.0, and NTSC/PAL) security camera tester
  • Provides an RS485 port for PTZ control of analog PTZ cameras
  • POE for IP cameras or 12VDC to analog cameras
  • Ethernet and network tests; Capture snapshots and video recordings; Generate video test patterns for monitor checking

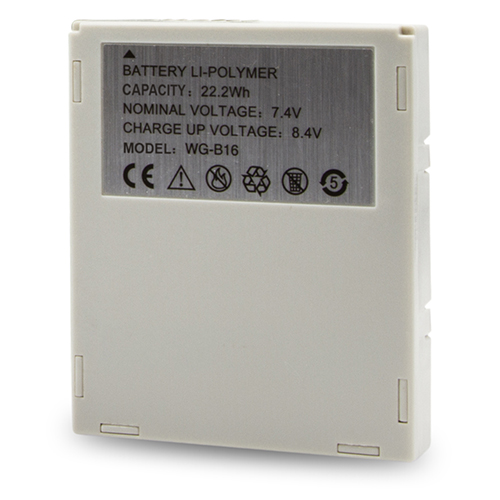

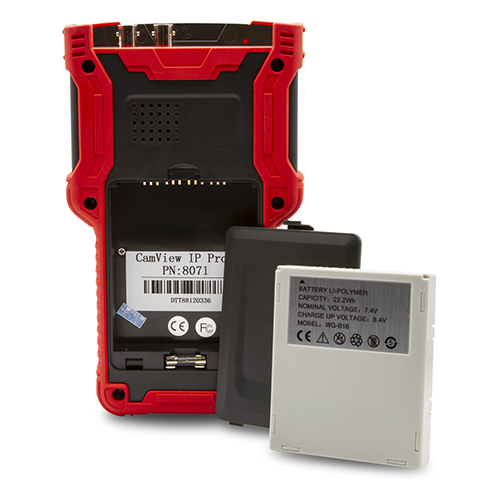

Battery Chemistry Lithium Ion (Li-Ion), Lithium Ion (Li-Ion) Polymer
Battery Rechargeable Yes
Battery Size Supported 7.4V
Brand Name Jewell Instruments, Triplett
Category Type Camera Test Equipment
Depth 4.4", 1.5"
Device Function LAN Cable Testing, Multiple Cable Testing, Analog Camera Testing, Audio Signal Testing, Cable Testing, Camera Testing, IP Camera Testing, Loopback Testing, Network Testing, Network Troubleshoot, PoE Testing, PTZ Control, TDR Cable Testing, Test Pattern, Video Testing, Network Testing, PoE Testing, Analog Camera Testing, IP Camera Testing, IP Scan, PTZ Control
Environmentally Friendly Yes
Ethernet Technology Gigabit Ethernet
Height 7.5"
Input Voltage 12 V AC
Limited Warranty 1 Year
Model 8071, TRI-8071
Media Type Supported Twisted Pair
Network Standard 10/100/1000Base-TX
Network Technology 10/100/1000Base-T
Number of Network (RJ-45) Ports 2
PoE (RJ-45) Port Yes
Product Line CamView IP Pro+, CamView
Product Type CCTV Test Meter
Serial Port Yes
USB Yes
Vendor Name Triplett Test Equipment & Tool
Weight (Approximate) 3.53 lb, 3.50 lb
Width 7.5", 1.5", 4.4"
Wireless LAN No
