Model: SM16TAT2SA-NART

Category: Enterprise Networking, Enterprise Hubs & Routers & Switches

Brand: Transition Networks

Dealer pricing

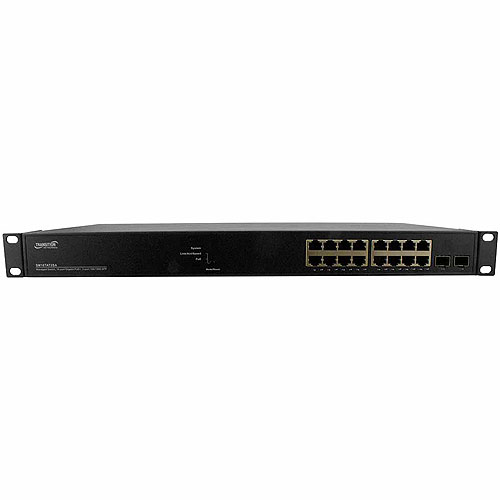

This switch is a next generation smart managed switch with 36Gbps switching capacity. It provides (16) 10/100/1000Base-T copper ports with IEEE 802.3at PoE+ capability and (2) additional 100/1000 dual speed SFP slots.

The embedded Device Management System (DMS) software provides the benefits of ease of use in IP surveillance, Wireless Access Point and other applications. The DMS capability built into the switch provides time-saving features enabling security integrators or network administrators to establish and document a baseline deployment, automatically discover and remotely configure attached IP-powered devices (PDs).

Main Features

  • IPv6 Access Management
  • Support Jumbo Frame up to 9K bytes
  • Authentication – RADIUS, TACACS+
  • DHCP Relay, DHCP Snooping, DHCP Server
  • L2/L3/L4 ACLs Support MAC ACL, IP standard/extended ACL
  • LLDP (Link Layer Discovery Protocol)
  • IEEE 802.3az Energy Efficiency
  • P Source Guard, Port Security
  • Syslog

PoE Main Features

  • Compliant with IEEE 802.3at PoE+
  • Compliant with IEEE 802.3af PoE
  • PoE configuration
  • Auto Power Reset (APR)
  • Always on PoE

Brand Name Transition Networks
Category Type Enterprise Hubs & Routers & Switches
Depth 8.3", 1.7"
Environmental Certification RoHS, RoHS, WEEE, WEEE
Environmentally Friendly Yes
Ethernet Technology Gigabit Ethernet
Expansion Slot Type SFP
Form Factor Rack-mountable
Height 1.7"
Layer Supported 4
Length 8.3"
Limited Warranty Lifetime
Manageable Yes
Manufacturer Transition Networks, Inc
Model SM16TAT2SA-NA-RT, SM16TAT2SA-NART
Media Type Supported Optical Fiber, Twisted Pair, Twisted Pair, Optical Fiber
Modular Yes
Network Technology 10/100/1000Base-T, 1000Base-X, 1000Base-X, 10/100/1000Base-T
Number of +12V Rails 2
Number of PoE+ (RJ-45) Ports 16
Number of SFP Slots 2
Number of Total Expansion Slots 2
Packaged Quantity 4
Port/Expansion Slot Details 16 x Gigabit Ethernet Network, 16 x Gigabit Ethernet Network, 2 x Gigabit Ethernet Expansion Slot
Power Source Power Supply
Product Type Ethernet Switch, SFP
Redundant Power Supply Supported No
Shared SFP Slot No
Stack Port No
Total Number of Network Ports 16
Uplink Port No
Vendor Name Transition Networks
Weight (Approximate) 6.60 lb
Width 17.4"
