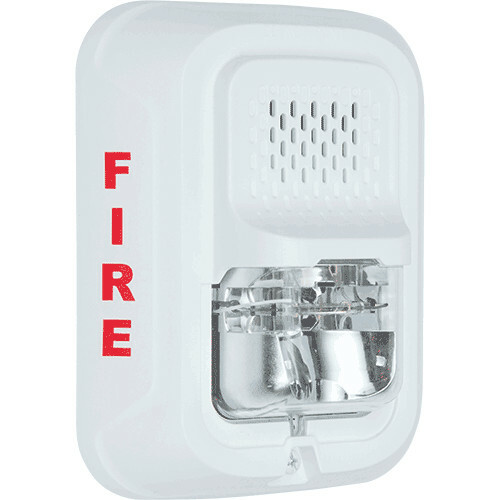

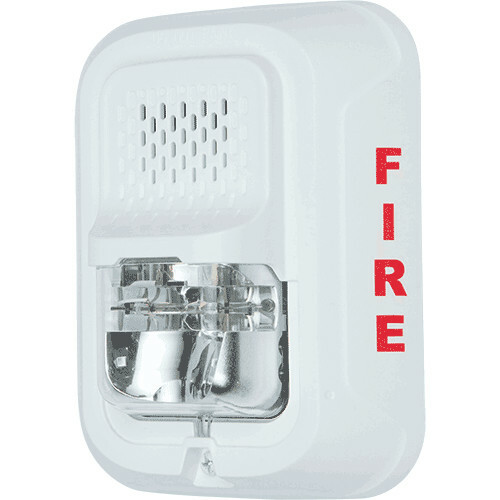

System Sensor L P2WL Horn/Strobe
System Sensor L P2WL Horn/Strobe

System Sensor L P2WL Horn/Strobe

Model: P2WL

Category: Notification Appliances, Sounder Strobes

Brand: System Sensor

Dealer pricing

The System Sensor L-Series offers the most versatile and easy-to-use line of horns, strobes, and horn strobes in the industry with lower current draws and modern aesthetics. With white and red plastic housings, standard and compact devices, and plain, FIRE, and FUEGO-printed devices, System Sensor L-Series can meet virtually any application requirement.
The L-Series line of wall-mount horns, strobes, and horn strobes include a variety of features that increase their application versatility while simplifying installation. All devices feature plug-in designs with minimal intrusion into the back box, making installations fast and foolproof while virtually eliminating costly and time-consuming ground faults.
To further simplify installation and protect devices from construction damage, the L-Series utilizes a universal mounting plate for all models with an onboard shorting spring, so installers can test wiring continuity before the device is installed.
Main Features
  • Updated Modern Aesthetics
  • Small profile devices for Horns and Horn Strobes
  • Plug-in design with minimal intrusion into the back box
  • Tamper-resistant construction
  • Automatic selection of 12- or 24-volt operation at 15 and 30 candela
  • Horn rated at 88+ dBA at 16 volts
  • Rotary switch for horn tone and two volume selections
  • Mounting plate for all standard and all compact wall units
  • Mounting plate shorting spring checks wiring continuity before device installation
  • Electrically compatible with legacy SpectrAlert and SpectrAlert Advance devices
  • Compatible with MDL3 sync module

Alarm Type Audible, Visual, Visual, Audible
Application/Usage Fire Alarm, Indoor, Fire Alarm, Indoor
Brand Name System Sensor
Category Type Sounder Strobes
Color Clear Lens, White Housing, White, Clear, Clear Lens, White Housing
Compatibility :
Connectivity Technology Wired
Depth 2.5"
Durability Tamper Resistant
Features Tamper Resistant
Form Factor Wall Mountable
Height 4.7"
Input Voltage 33 V DC
Model P2WL
Power Source DC Supply
Product Functions Alarm
Product Series L
Product Type Horn/Strobe
Vendor Name System Sensor
Width 4.7", 2.5"
