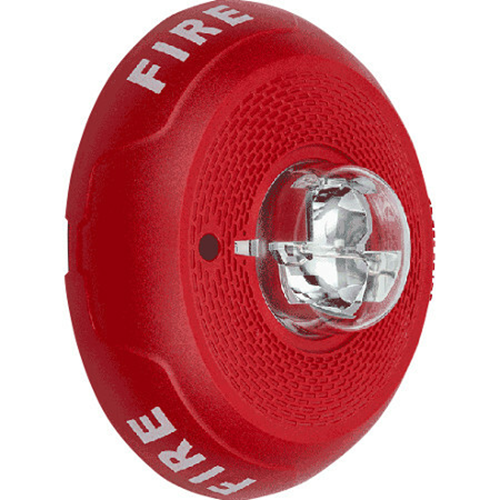

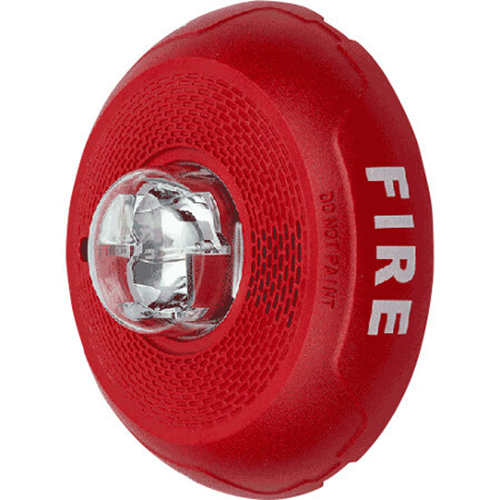

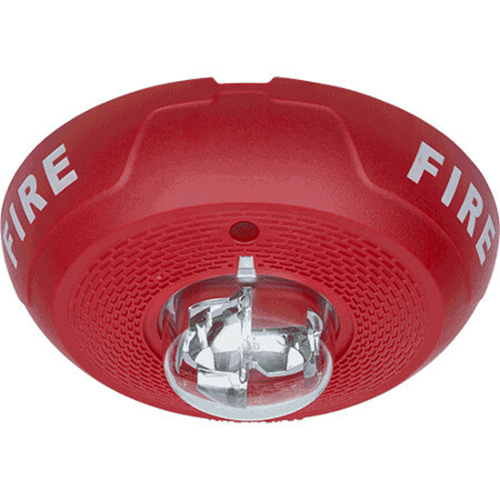

System Sensor L PC2RL Horn/Strobe
System Sensor L PC2RL Horn/Strobe

System Sensor L PC2RL Horn/Strobe

Model: PC2RL

Category: Notification Appliances, Sounder Strobes

Brand: System Sensor

Dealer pricing

L-Series horn strobes are rich with features guaranteed to cut installation time and maximize profits. Intended for full building notification as well as on the property ground, they produce a loud sound to notify occupants to evacuate the buildings; the strobe is intended to notify those that may have a hearing impairment. Features include a universal mounting plate with a preliminary snap-in feature to hold the product in place for the screw attachment, 7 field-selectable candela settings for wall and ceiling mount devices, and rotary switches to select horn tone and volume settings. Compatible with 12- or 24-volt systems. L-Series horn strobes are listed to UL 1971 and UL 464 for public mode evacuation.

Main Features
  • Plug-in design with minimal intrusion into the back box
  • Tamper-resistant construction
  • Automatic selection of 12- or 24-volt operation at 15 and 30 candela
  • Field-selectable candela settings on ceiling units: 15, 30, 75, 95, 115, 150, and 177
  • Horn rated at 88+ dBA at 16 volts
  • Rotary switch for horn tone and two volume selections
  • Universal mounting plate for ceiling units
  • Mounting plate shorting spring feature checks wiring continuity before device installation
  • Electrically Compatible with legacy SpectrAlert and SpectrAlert Advance devices
  • Compatible with MDL3 sync module
  • Listed for ceiling mounting only

Alarm Type Audible, Visual, Audible, Visual
Application/Usage Indoor, Fire Alarm, Indoor, Fire Alarm
Brand Name System Sensor
Category Type Sounder Strobes
Color Clear Lens, Clear Lens, Red, Red, Clear
Compatibility
Connectivity Technology Wired
Durability Tamper Resistant
Features Tamper Resistant
Form Factor Ceiling Mountable
Height 2.5"
Input Voltage 33 V DC
Model PC2RL
Power Source DC Supply
Product Functions Alarm
Product Series L
Product Type Horn/Strobe
Vendor Name System Sensor
Width 2.5"
