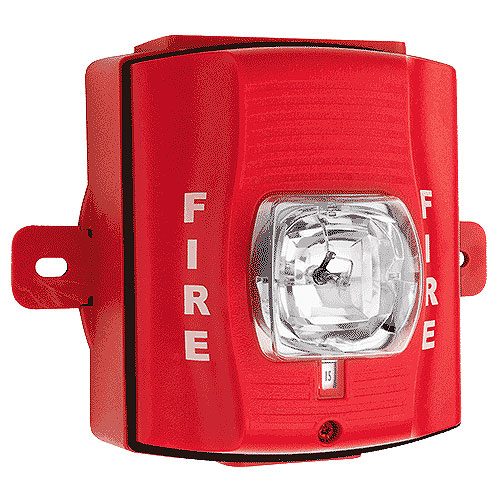

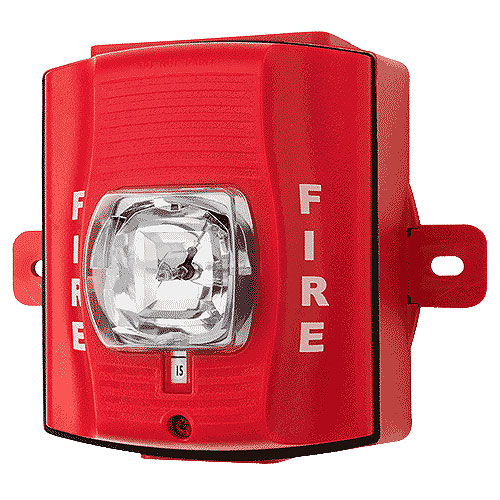

System Sensor SpectrAlert SRK Safety Light

SpectrAlert Advance offers the broadest line of outdoor horns, strobes, and horn strobes in the industry. With white or red plastic housings, wall or ceiling mounting options, and plain or FIRE-printed devices, SpectrAlert Advance can meet virtually any application requirement, including indoor, outdoor, wet, and dry applications in temperatures from −40°F to 151°F.

Like the entire SpectrAlert Advance line, outdoor horns, strobes, and horn strobes for wall applications include a variety of features that increase application flexibility and simplify installation. First, field-selectable settings, including candela, automatic selection of 12- or 24-volt operation, horn tones, and three volume options enable installers to easily adapt devices to meet requirements.

Next, SpectrAlert Advance devices use a universal mounting plate for both wall and ceiling applications. This mounting plate includes an onboard shorting spring that ensures wiring continuity before devices are installed, so installers can verify proper wiring without mounting the devices and exposing them to potential construction damage. Once the plates are mounted, all SpectrAlert Advance devices utilize a plug-in design with a single captured screw to speed installation and virtually eliminate costly ground faults.

Main Features

• Includes plastic weatherproof back box
• Candela Selectable strobe settings of 15, 15/75, 30, 75, 95, 110 and 115 cd
• Color Red
• DC Max Op Current (see Data Sheet for complete current draw information)
• FWR Max Op Current (see Data Sheet for complete current draw information)
• Location Outdoor
• Marking FIRE?
• Mounting Wall
• Operating Temperature -40°F to 151°F (-40°C to 66°C)
• Operating Voltage Range 8 to 17.5 V (12V nominal) or 16 to 33 V (24 nominal)
• Outdoor Device Type Strobes
• Series SpectrAlert Advance
• Voltage Regulated 12DC/FWR or regulated 24DC/FWR
• Wall Mount Dimensions 5.6"L x 4.7"W x 2.5"D (142 mm L x 119 mm W x 64 mm D)
• Wall Mount with Box 5.7"L x 5.1"W x 2.0"D
• Wiring Gauge 12 to 18 AWG
