The System Sensor L-Series offers the most versatile and easy-to-use line of horns, strobes, and horn strobes in the industry with lower current draws and modern aesthetics. With white and red plastic housings, standard and compact devices, and plain, FIRE, and FUEGO-printed devices, System Sensor L-Series can meet virtually any application requirement.
The L-Series line of wall-mount horns, strobes, and horn strobes include a variety of features that increase their application versatility while simplifying installation. All devices feature plug-in designs with minimal intrusion into the back box, making installations fast and foolproof while virtually eliminating costly and time-consuming ground faults.
To further simplify installation and protect devices from construction damage, the L-Series utilizes a universal mounting plate for all models with an onboard shorting spring, so installers can test wiring continuity before the device is installed. Installers can also easily adapt devices to a suit a wide range of application requirements using field-selectable candela settings, automatic selection of 12- or 24-volt operation, and a rotary switch for horn tones with two volume selections.

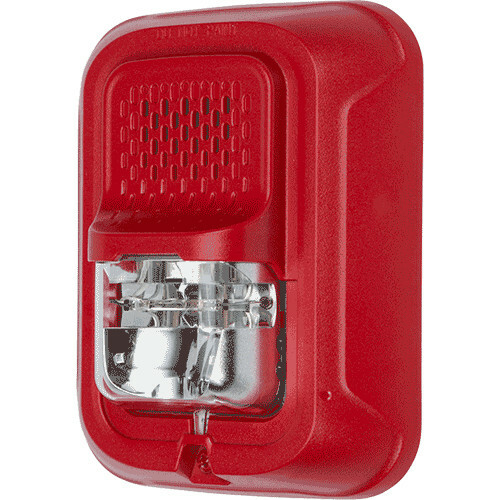

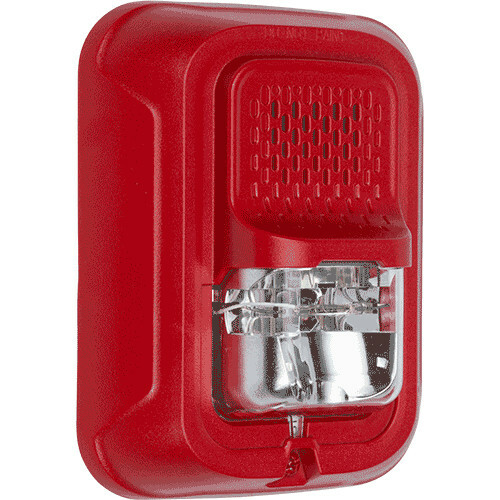

L-Series, red, wall-mountable, clear lens, 2-wire, horn strobe that is unmarked. Selectable strobe settings: 15, 30, 75, 95, 110, 135, and 185 cd.
Main Features
- Updated Modern Aesthetics
- Small Profile Devices For Horns And Horn Strobes
- Plug-In Design With Minimal Intrusion Into The Back Box
- Tamper-Resistant Construction
- Automatic Selection Of 12 Or 24 Volt Operation At 15 And 30 Candela
- Rotary Switch For HoTon
