Planar EP5024K 4K LCD Display

Model: 997-9248-01

Category: Commercial Displays, Commercial Displays (no tuner)

Brand: Planar

Dealer pricing

The Planar® EP Series is a line of Ultra HD resolution (3840x2160) professional LCD displays that offer best-in-class reliability with stunning image quality. Available in 50" , 58" and 65" , the displays come standard with commercial-grade features required for digital signage, corporate and control room environments. Also available in touch versions, Planar EP Series displays bring interactivity to the 4K immersive experience.

4K Clarity for Professional Applications

With four times the resolution of Full HD, Planar EP Series displays deliver life-like picture quality and an immersive experience. Compatible both existing Full HD and 4K sources, the displays support both current and future use. With Planar EP Series displays, Full HD or sub-1080 content can be up-scaled to fill the entire 4K display area.

Extended Use Support

Planar EP Series displays combine the visual benefits of 4K resolution with the commercial reliability required by demanding 24x7 commercial operations. Ideal for public spaces, an all-metal casing offers added durability and heat dissipation.

Multi-Source Viewing

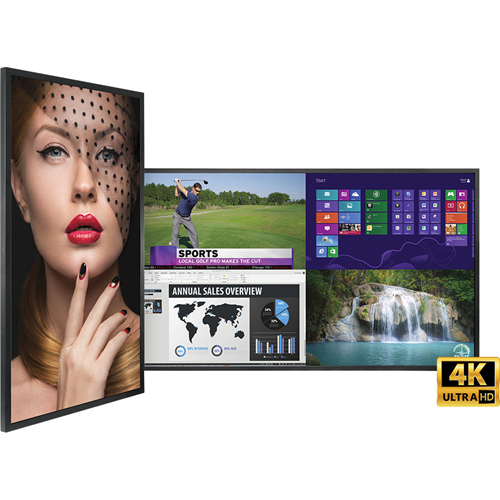

Featuring built-in processing that supports simultaneous viewing of 2 or 4 sources at one time, Planar EP Series displays leverage commonly used layouts that can be saved and conveniently recalled upon command.

Supports True 4K @ 60Hz

The Planar EP Series supports native 4K resolution at up to 60Hz, enabling smooth video and mouse tracking. True 4K at 60Hz can be driven via both DisplayPort 1.2 and HDMI.

Built-in Digital Signage Features

All Planar EP Series displays come standard with expansion slots that support Intel's Open Pluggable Specification (OPS), making them compatible with OPS devices such as media players and PCs. With Planar EP Series displays, visual content can also be complemented with audio messaging using built-in speakers.

Logo-Free

Planar EP Series displays are logo-free, allowing the spotlight to shine on the display's screen. Unbranded bezels are ideal for portrait installations and feature a symmetrical bezel.

Crestron Modules

Crestron Modules for Planar EP Series displays are available, making it even easier for resellers to integrate and consultants to recommend the Planar EP Series. Resellers who do integration have estimated these modules can save hours of programming time, reducing installation time and costs.

Main Features
  • 50", 58" and 65" Ultra HD resolution (3840 x 2160) LCD displays
  • Designed for 24x7 operation
  • Built-in speakers and OPS slot

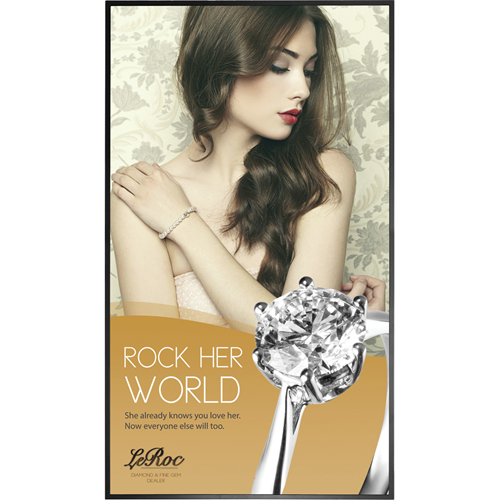

  • Supports landscape and portrait
  • Touch models available

Backlight Technology Edge LED
Bezel Width (Bottom) 0.80"
Bezel Width (Left) 0.80"
Bezel Width (Right) 0.80"
Bezel Width (Top) 0.80"
Brand Name Planar
Brightness 500 Nit
Category Type Commercial Displays (no tuner), Retail & Hospitality, House of Worship, Education, Corporate & Telework
Color Depth 10-bit
Color Gamut 88% NTSC
Depth 2.6"
Display Resolution 3840 x 2160
Display Screen Type LCD
Environmental Certification cTUVus
Environmentally Friendly Yes
Ethernet Yes
HDMI Yes
Height 2.6", 26"
Input Voltage 120 V AC, 230 V AC, 120 V AC, 230 V AC
Limited Warranty 3 Year
Manufacturer Leyard
Model 997-9248-01
Maximum Screen Size Supported 50"
Maximum Video Resolution 3840 x 2160
Number of +12V Rails 2
Number of DisplayPorts 2
Number of USB 2.0 Ports 2
Number of USB 3.0 Ports 1
Packaged Quantity 1
Pixel Pitch 11.2 mil
Product Series EP
Product Type Digital Signage Display
Scan Format 2160p
Screen Size 50"
Serial Yes
TAA Compliant Yes
USB Yes
Vendor Name Planar

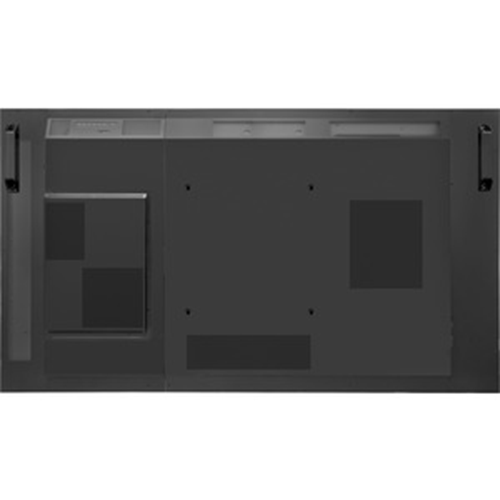

VESA Mount Standard 200 x 200
Weight (Approximate) 62 lb
Width 44.9", 26"
