Planar QE7550 4K LCD Display
Planar QE7550 4K LCD Display

Planar QE7550 4K LCD Display

Model: 997-8795-01

Category: Commercial Displays (no tuner)

Brand: Planar

Dealer pricing

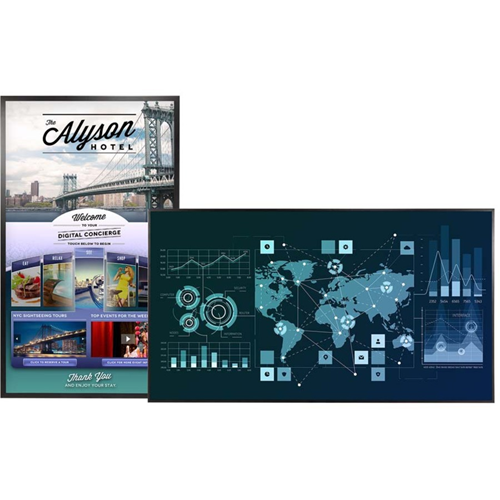

Planar® QE Series is a line of 75" , 86" and 98" Ultra HD resolution (3840 x 2160) LCD displays that is ideal for applications ranging from dynamic digital signage to collaborative meeting spaces. Multi-touch models are also available.

Superior 4K Video Performance and Compatibility

Planar QE Series displays support native 4K resolution at up to 60Hz via HDMI 2.0 and DisplayPort 1.2, enabling smooth motion video and mouse tracking. Compatible with new and emerging 4K sources, the Planar QE Series uses HDCP 2.2-compliant HDMI 2.0 inputs.

Quad-Source Viewing

With Planar QE Series displays, users can view four sources simultaneously in quad layout and receive remote monitoring alerts via email when a designated event occurs. For precise image control, adjustments can be made within each of the four zones allowing users to optimize the picture quality at the source level.

Enhanced Reliability

Planar QE Series displays operate without fans, providing whisper quiet operation and reduced points-of-failure.

Main Features

  • With its 75" screen size and 500 cd/m² brightness, this digital signage system is perfect for displaying high-impact information in hotels, eateries, and other businesses
  • Experience luminescent visual images with LCD display
  • 3840x2160 Display - Delivers a breathtaking ultra HD viewing experience with immersive pictures that are dynamic, clear, and as expansive as life
  • Engages your customers and makes their viewing experience breathtaking with its 2160p content
  • Edge LED lighting offers stunning brightness for both plain and entertainment content

ADI Part Number 8Q-QE7550
Backlight Technology Edge LED
Bezel Width (Bottom) 0.60"
Bezel Width (Left) 0.60"
Bezel Width (Right) 0.60"
Bezel Width (Top) 0.60"
Brand Name Planar
Brightness 500 Nit
Category Type Commercial Displays (no tuner), Corporate & Telework, Education, House of Worship, Retail & Hospitality
Color Depth 10-bit
Color Gamut 72% NTSC
Depth 3.2"
Display Resolution 3840 x 2160
Display Screen Type LCD
Dynamic Contrast Ratio 20,000:1
Environmental Certification cTUVus
Environmentally Friendly Yes
Ethernet Yes
HDMI Yes
Height 37.8"
Input Voltage 120 V AC, 230 V AC, 120 V AC, 230 V AC
Limited Warranty 3 Year
Manufacturer Leyard
Model 997-8795-01
Maximum Load Capacity 115 lb
Maximum Screen Size Supported 75"
Maximum Video Resolution 3840 x 2160
Number of DisplayPorts 1
Packaged Quantity 1
Pixel Pitch 16.9 mil
Product Series QE
Product Type Digital Signage Display
Scan Format 2160p
Screen Size 75"
Serial Yes
TAA Compliant Yes
Transmitter Height 0.60"
Vendor Name Planar
VESA Mount Standard 600 x 400
Weight (Approximate) 115 lb
Width 3.2", 66.1"
