Model: NV-EC1701PLS-BSE
Category: POE Midspans, Injectors & Repeaters
Brand: Nvt Phybridge

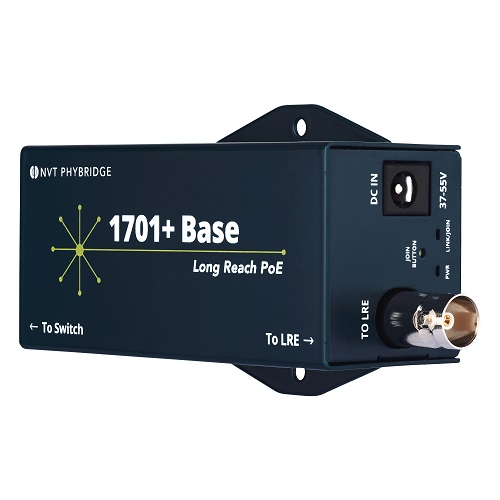

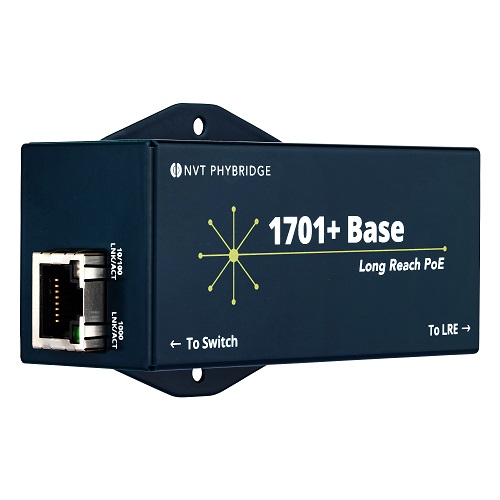

Dealer pricingThe NVT Phybridge 1701+ Extender Solution is designed to supercharge the downlink ports of a standard Ethernet switch, delivering up to 420Mbps and PoE+ over Coax, single pair UTP or 2 wire infrastructures with reach of up to 8,000ft (2.4km) on RG6. That's 24X the reach of standard Ethernet switches, thus removing the costs and disruptions associated with multiple IDF location requirements.
With the 1701+ Extender Solution, IP IoT devices can be connected to the existing Coax, UTP or 2 wire cabling infrastructure, delivering optimal performance while saving cost, time, and environmental e-waste. Furthermore, the cost savings realized by using the 1701+ Extender Solution can enable system designers to transfer budget and resources towards higher-quality applications and IEEE 802.3at/af compliant IoT devices, including IP-enabled phones, cameras, access control, speakers, and even facilities lighting.
| ADI Part Number | NV-EC1701PBS |
| Brand Name | NVT Phybridge |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 4.2" |
| Manufacturer | Phybridge, Inc |
| Model | NV-EC1701PLS-BSE |
| Maximum Data Transfer Rate | 52.50 MB/s |
| Maximum Extended Range | 7874.02 ft |
| Minimum Output Voltage | 55 V DC |
| Packaged Quantity | 1 |
| Product Series | 1701 |
| Product Type | Network Extender |
| Width | 2.1", 1.3" |
