Model: NV-16PS10-PVD
Category: Batteries & Power Supplies
Brand: Nvt Phybridge

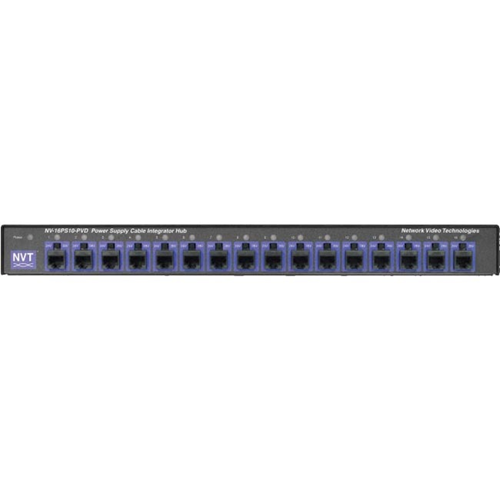

Dealer pricingThe NVT Phybridge model NV-16PS10-PVD combines a 1 Amp/channel power supply with pass through video and telemetry data, for up to 16 cameras, all over UTP wire. Designed for installation in the wiring/IDF telecom closet, or at the Control/MDF room, the NV-16PS10-PVD consolidates connectivity via standard 4-pair RJ45 EIA/TIA 568B compliant premises wiring and pinouts.

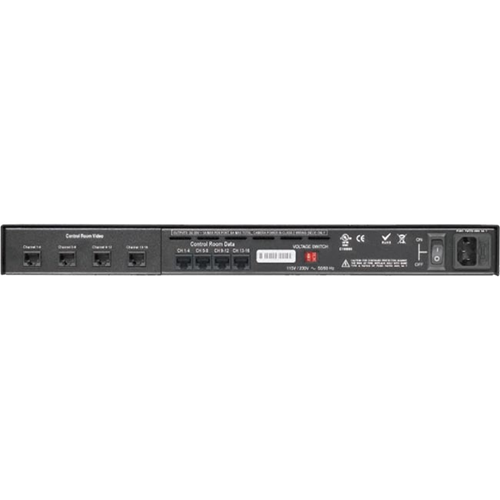

At the camera, Power, Video and Data connections are made using a PVD™ transceiver via an RJ45 connector and a single 4-pair cable. Control/MDF room connections are achieved with a single 4-pair RJ45 cable for each group of four cameras. Consolidated P/T/Z telemetry data, if required, passes through the NV-16PS10-PVD's data path, and is connected to the controller via another 4-pair RJ45 cable.
| ADI Part Number | NV-16PS10PVD |
| Brand Name | NVT Phybridge |
| Current Rating | 3 A |
| Depth | 1.7", 12" |
| Environmental Certification | RoHS, WEEE |
| Environmentally Friendly | Yes |
| Form Factor | Desktop/Wall Mountable |
| Frequency | 60 Hz |
| Input Voltage | 28 V AC, 120 V AC, 230 V AC |
| Limited Warranty | Lifetime |
| Manufacturer | Phybridge, Inc |
| Model | NV-16PS10-PVD |
| Maximum Output Current | 1 A |
| Output Ports | 16 x Ethernet |
| Product Type | PoE Injector Hub |
| Rack Height | 1U |
| Rack Width | 19" |
| RMS Output Power | 325 W |
| Weight (Approximate) | 22 lb |
