DIGITAL EQ HUB RCVR 16 CHANNEL
DIGITAL EQ HUB RCVR 16 CHANNEL

DIGITAL EQ HUB RCVR 16 CHANNEL

Model: NV-1672

Category: UTP Accessories

Brand: Nvt Phybridge

Dealer pricing

Features:

  • Adaptive DigitalEQTM fully automatic 4-band equalization provides adjustment-free equalization every time

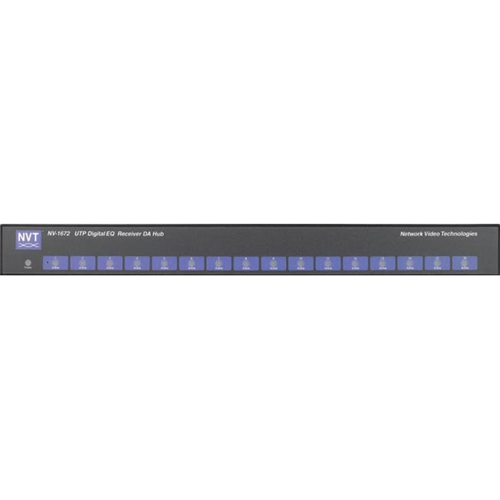

  • Compact rack-mountable 19" 1U high enclosure features 16 channels with 2 outputs per channel
  • Full motion CCTV video at distances up to 3,000ft (1km) when used with any passive NVT transceiver or hub; 1 mile (1,6km) when used with the NV-653T active transmitter; 1,000ft (300m) with shielded twisted-pair when used with any passive NVT transceiver or hub

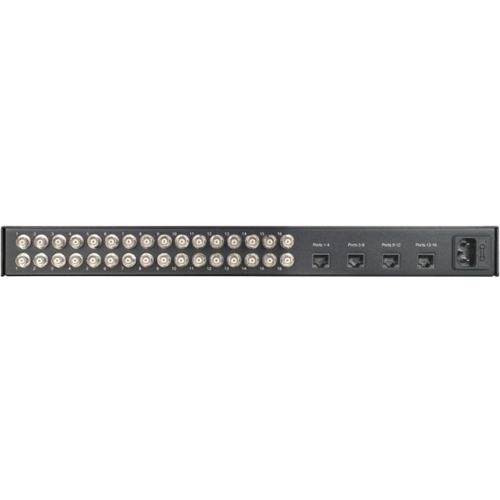

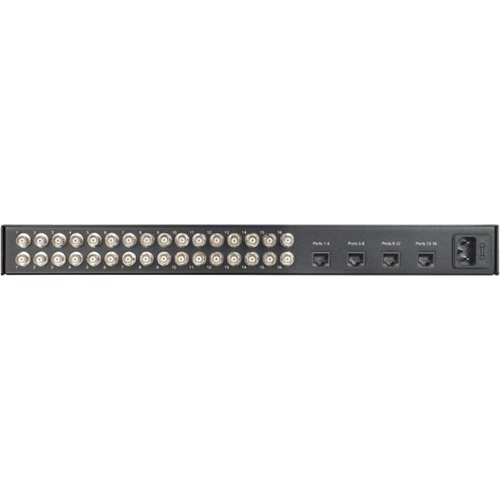

  • RJ45 connectivity with optional NV-RJ45A RJ45-to-screw-terminal adaptors (included)
  • Exceptional interference rejection
  • Built-in transient protection and ground-lifting
  • Automatic compensation for reverse-polarity wiring
  • At-a-glance per-channel diagnostics
  • Compatible with qualified UTP cameras
  • Includes sixteen 2ft (60cm) coax jumper cables, rack mount hardware and four NV-RJ45A adaptors
  • Limited lifetime warranty
Employing NVT's latest generation DigitalEQTM technology, the NV-1672 is an 16-channel active (amplified) hub that allows the transmission of full-motion monochrome or color video for distances up to 1 mile (1,6km) using Category 2 or better unshielded twisted-pair (UTP) wire. The receiver hub continuously and automatically conditions the video signal, compensating for cable attenuation, wiring polarity, ground loops, and voltage transients, independent of video signal content.

The unparalleled interference rejection and low emissions allow long run video to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. this allows the use of shared or existing cable plant. Ground-lifting ensures no annoying "hum-bars" when ground-potential differences exist. With built-in transient protection, damaging voltage spikes are eliminated.

ADI Part Number NV-1672
Brand Name NVT Phybridge
Category Type UTP Accessories
Connectivity Technology Wired
Environmentally Friendly Yes
Form Factor Desktop, Rack-mountable, Wall Mountable
Limited Warranty Lifetime
Manufacturer Phybridge, Inc
Maximum Extended Range 3280.84 ft
Media Type Supported Twisted Pair
More Ways To Save Sale Center
Packaged Quantity 4
Product Type Video Extender Receiver
Receiver Depth 8.13"
Transmitter Depth 1.70"
Twisted Pair Cable Standard Category 5
Vendor Name Nvt Phybridge
Width 17"
