16PORT PASSIVE VIDEO TRANS HUB

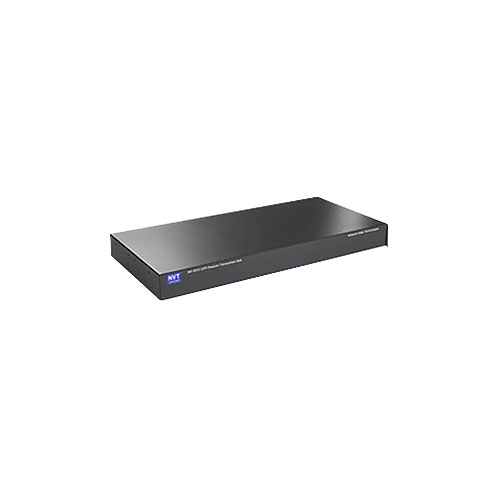

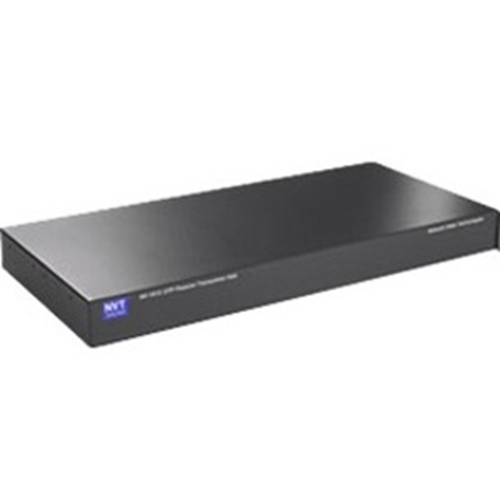

The NVT Model NV-1613 is a 16 port passive transceiver hub that allows transmission of real-time monochrome or color video over Unshielded Twisted-Pair (UTP) telephone wire. Baseband (composite) signals of any type are supported.

"Up-the-coax" type signal may be sent over the same wire pair at distances up to 750ft (225m).

The unparalleled interference rejection ability of the Model NV-1613 Hub allows video signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. Perfect for larger CCTV installations where port density and camera number growth are prevalent. With built-in transient protection, damaging voltage spike problems are eliminated.

Main Features

• High-Density 19" 1U high enclosure features 16 ports
• Use with any NVT passive transceiver or hub as a rack-mountable passive transceiver for full motion CCTV at distances up to 750ft (225m)
• Use with any NVT DigitalEQTM Hub or active receiver as a rack-mountable passive transmitter for distances up to 3,000ft (1km)
• Use with any NVT StubEQTM for distances up to 1,500ft (460m)
• RJ45 video connectivity with optional NV-RJ45A RJ45 to screw terminal adaptors included
• No power required
• Exceptional interference rejection
• Built-in transient protection
• Supports “up-the coax” type control signal up to 750ft (225m)
• Compatible with qualified UTP cameras
• Includes sixteen 2ft (60cm) coax jumper cables and rackmount hardware
