Model: NV-226J-PV

Category: UTP Accessories

Brand: Nvt Phybridge

Dealer pricing

Features:

  • Extended distance camera power and video routed through UTP and RJ45
  • Supports 12VDC cameras with onboard regulated power
  • Use with NVT's PVD™ Power Supply Hubs and Cable Integrators
  • Up to 3,000ft (1km) with a NVT DigitalEQTM Hub or active receiver, (see Power Distance Chart)
  • Up to 1,500ft (460m) with a NVT StubEQTM Hub
  • Frequency response DC to 10MHz (see Recommended Distance Chart)
  • Up to 750ft (225m) with NVT's Passive Receiver Hubs (see Power Distance Chart)
  • Exceptional interference rejection
  • Built-in transient protection
  • Limited lifetime warranty

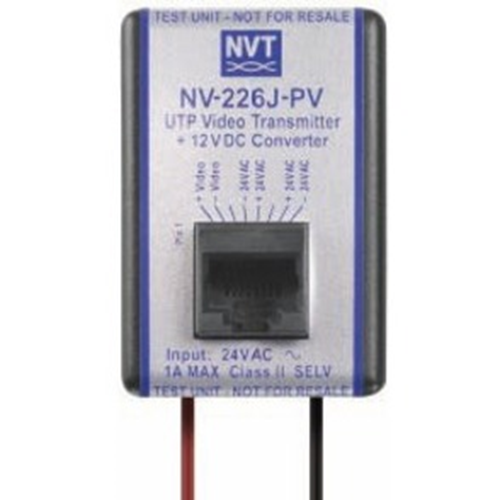

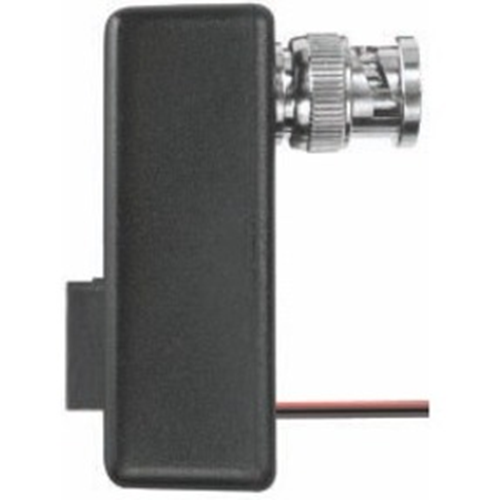

The NV-226J-PV Video Transmitter +12VDC Converter is a passive (non-amplified) video transmitter combined with a 24VACto-12VDC converter. Designed to fit on the back of a fixed 12 VDC camera, this unit is architected to convert 24VAC power from the control room, while delivering real-time baseband (composite) video at extended distances, all over one 4-pair UTP cable.

The unparalleled interference rejection and low emissions of the NV-226J-PV allows video and lowvoltage power to coexist within the same 4-pair cable, using structured (EIA 568B) wiring practices. It is recommended that the 24VAC not share the same jacketed wire bundle with telecom or datacom signals.

The NV-226J-PV carries a limited lifetime warranty, is UL and cUL listed, and is CE, WEEE, and RoHs compliant.

Brand Name NVT Phybridge
Category Type UTP Accessories
Connectivity Technology Wired
Environmental Certification RoHS, WEEE
Environmentally Friendly Yes
Fan Height 1.52"
Limited Warranty Lifetime
Manufacturer Phybridge, Inc
Model NV-226J-PV
Maximum Drill Bit Diameter 0.81"
Maximum Extended Range 3280.84 ft
Media Type Supported Twisted Pair
More Ways To Save Sale Center
Product Type Video Extender Transmitter
Shipping Width 2.25"
Twisted Pair Cable Standard Category 5
Vendor Name Nvt Phybridge
Weight (Approximate) 1.76 oz
