5PRT GB MLTI-MNT SWTCH W/PD PW

Model: SW-100-05PD

Category: Education Solutions, Hubs, Routers & Switches

Brand: Luxul

Dealer pricing

WHAT THIS PRODUCT DOES:

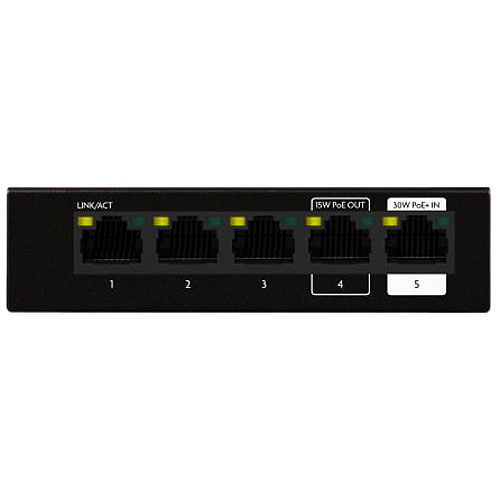

The SW-100-05PD is a 5 port PoE+ powered switch that is powered from a PoE+ switch or injector powered uplink and provides an additional four ports of Gb Ethernet connectivity. One of the Gb Ethernet ports allows the powering of a PoE 802.3af device (pass through port) such as a camera, control system interface, or AV over IP receiver. The durable metal enclosure includes detachable wing brackets for mounting and attachable magnet feet for easy mounting to metal surfaces.

USE THE SW-100-05PD TO:

  • Connect up to four devices to the network without having to be plugged into a wall outlet
  • Install into a wide range of environments
FEATURES:
  • 5 auto-negotiation Gigabit ports
  • 1 PoE+ PD Gb port to power the switch (30 watts required)
  • 1 PoE output port to power a PoE device (15 watts maximum)
  • Durable metal case
  • Multiple mounting options
  • Three-year limited warranty

Amplifier Power Output 15 W
Brand Name Luxul
Depth 1"
Environmentally Friendly Yes
Ethernet Technology Gigabit Ethernet
Form Factor Desktop
Limited Warranty 3 Year
Manufacturer Legrand Group
Model SW-100-05PD
Media Type Supported Twisted Pair
Network Technology 10/100/1000Base-T
Number of +12V Rails 2
Packaged Quantity 5
Port/Expansion Slot Details 1 x Gigabit Ethernet PoE, 1 x Gigabit Ethernet PoE+, 3 x Gigabit Ethernet Network
Power Consumption 5.80 W
Power Source PoE+
Product Type Ethernet Switch
Vendor Name Luxul
Weight (Approximate) 8 oz
Width 3.9"
