Luxul AV Series 18-Port Gigabit PoE+ L2/L3 Managed Switch
Luxul AV Series 18-Port Gigabit PoE+ L2/L3 Managed Switch

Luxul AV Series 18-Port Gigabit PoE+ L2/L3 Managed Switch

Model: AMS-1816P

Category: Hubs, Routers & Switches

Brand: Luxul

Dealer pricing

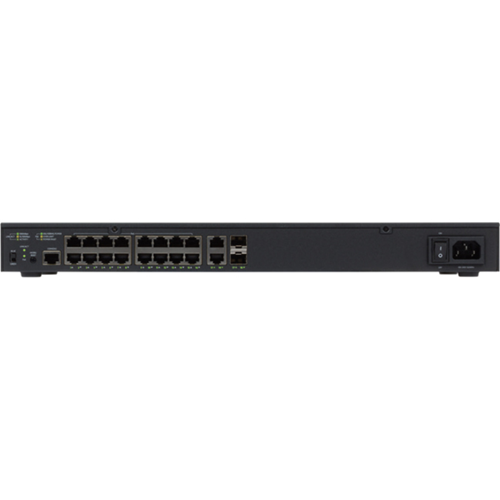

The AMS-1816P is an 18-port Gigabit switch that easily functions on its own or provides cost effective expandability via its two Gigabit SFP uplink ports to other Luxul switches in your AV rack. The 16 PoE+ ports provide a robust 185W power budget and simple power management to automation touch panels, security cameras, and other PoE-powered devices. The compact, rack-mountable design, selectable green/blue front-facing LEDs, and variable speed fans ensure aesthetic and quiet operation. The AMS-1816P provides simple installation with powerfully intuitive management, including L2/L3 switching, 802.1Q VLAN support with trunking, and QoS prioritization support.

PoE managed switches also now include port auto-recovery and power scheduling, ensuring system reliability and uptime. Port auto-recovery allows the switch to power cycle unresponsive PoE devices, ensuring system reliability and uptime. Port power scheduling allows PoE ports to be turned on or off on a schedule.
  • Simplify PoE device installation, including IP security cameras, VoIP devices, and wireless APs
  • Optimize and protect your network with advanced VLAN, QoS, and network security features
Main Features
  • 16 Gigabit 802.3af/at PoE+ ports (185W power budget)
  • Two Gigabit SFP ports
  • 802.1Q VLAN (with trunking) and QoS support
  • User-selectable green or blue front-facing LEDs
  • Variable speed fans for quiet operation
  • Standard 19" rack-mount
  • Full Layer 2/3 support

Brand Name On-Q, Luxul
Environmental Certification RoHS
Environmentally Friendly Yes
Ethernet Technology Gigabit Ethernet
Expansion Slot Type SFP (mini-GBIC)
Form Factor Desktop, Rack-mountable, Desktop, Rack-mountable
Height 1.8"
Layer Supported 3
Length 8.3", 17.4"
Limited Warranty 3 Year
Manageable Yes
Manufacturer Legrand Group, Luxul Wireless
Model AMS-1816P
Media Type Supported Optical Fiber, Twisted Pair, Optical Fiber, Twisted Pair
Modular Yes
More Ways To Save Hot Deals
Network Technology 1000Base-T, 1000Base-T, 1000Base-X, 1000Base-X
Number of +12V Rails 2
Number of PoE+ (RJ-45) Ports 16
Number of SFP Slots 2
Number of Total Expansion Slots 2
Packaged Quantity 1, 3
Port/Expansion Slot Details 16 x Gigabit Ethernet Network, 2 x Gigabit Ethernet Expansion Slot, 16 x Gigabit Ethernet Network
Power Source Power Supply
Product Series AV
Product Type Layer 3 Switch, SFP (mini-GBIC)
Total Number of Network Ports 16
Uplink Port Yes
Vendor Name Luxul
Weight (Approximate) 5.95 lb
Width 8.3", 1.8", 17.4"
