AXIS M3016 Network Camera - Dome

Model: 01152-001

Category: IP Dome Cameras

Brand: Axis Communications Inc

Dealer pricing

AXIS M3016 Network Camera is designed for quick and easy recessed installation. Delivering 3 MP video at full frame rate in a small and compact design, AXIS M3016 is perfect for stylish retail stores and other areas that require discreet surveillance.

Designed for discretion

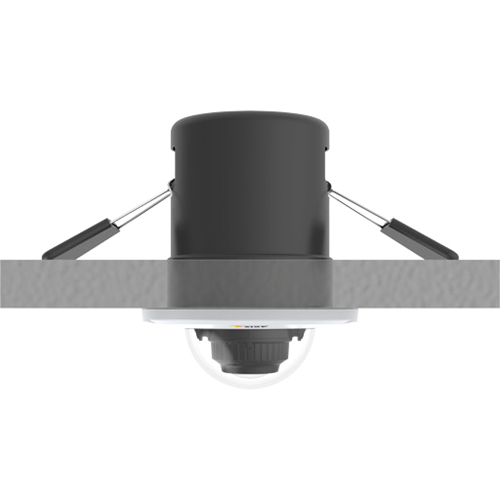

AXIS M3016 is seriously discreet. Specially designed for recessed mounting, this small, unobtrusive camera resembles a spotlight. Its cover is optionally available in black and is also easy to repaint to blend in anywhere.

Best-in-class quality

You would have to look far and wide to find better video quality and more great features in a camera in this class. AXIS M3016 offers 3 MP video at 30fps in maximum resolution, for example. And Axis WDR for excellent image quality when there are big differences between the lightest and the darkest spot in a scene. It also gives you large area coverage and a wide field of view, both horizontally and vertically.

Big on features. Small on price.

AXIS M3016 comes with the advanced Axis Zipstream technology that keeps storage and bandwidth requirements low and video quality high. The Axis Corridor Format option allows for optimal coverage of isles and corridors. AXIS M3016 is also equipped with a memory slot for optional local video storage. And it's designed for exceedingly fast, easy and cost-effective installation and integration.

Application/Usage Indoor
Brand Name AXIS
Category Type IP Dome Cameras
Color White
Color Supported Color
Connectivity Technology Wired
Depth 1.4"
Effective Camera Resolution 3 Megapixel
Environmentally Friendly Yes
Features Active Tampering Alarm, Auto Tracking, HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, PTZ, SD Card Local Storage, White Balance, Wide Dynamic Range
Field of View Horizontal field of view: 132°, vertical field of view: 96°
Form Factor Mini Dome
HD Recording Yes
Height 3.6"
Image Sensor CMOS
Image Sensor Type RGB CMOS, CMOS
Lens Type Fixed
Limited Warranty 5 Year
Longest Shutter Speed 1/5 Second
Manufacturer Axis Communications
Model 01152-001
Maximum Aperture f/2.4
Maximum Focal Length 1.80 mm
Maximum Frame Rate 30 fps
Maximum Operating Temperature 104°F (40°C)
Maximum Video Resolution 2016 x 1512
Minimum Focal Length 1.80 mm
Minimum Operating Temperature 32°F (0°C)
Mount Type Ceiling Mount, Recessed Mount, Wall Mount
Network (RJ-45) Yes
Operating Humidity 85%
Product Series M30, HD
Product Type Network Camera
Remote Management Yes
Shortest Shutter Speed 1/32500 Second
Storage Type Memory Card
Vendor Name Axis Communications Inc
Video Formats H.264, H.264, H.265, H.264, H.264 (MP), H.264 (MPEG-4 Part 10/AVC), H.264 HP, H.265, H.265 (MP), H.265 (MPEG-H Part 2/HEVC), Motion JPEG, H.265
Weight (Approximate) 12.35 oz
