AXIS F4005 Network Camera - Dome
AXIS F4005 Network Camera - Dome

AXIS F4005 Network Camera - Dome

Model: 0798-001

Category: IP Cameras, IP Dome Cameras

Brand: Axis Communications Inc

Dealer pricing

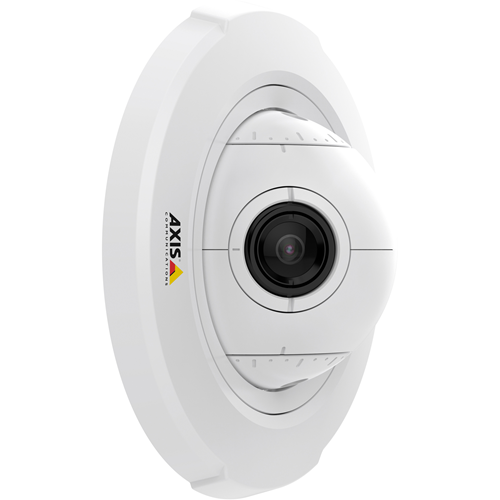

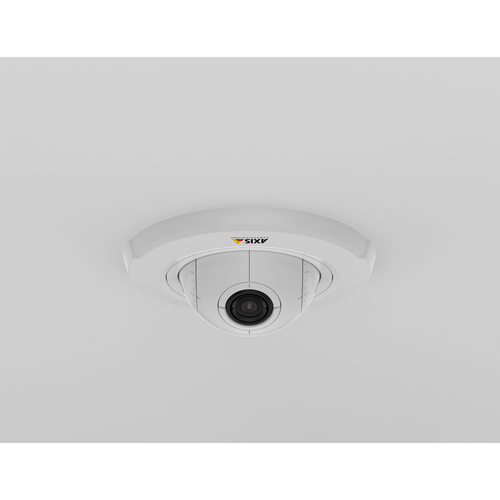

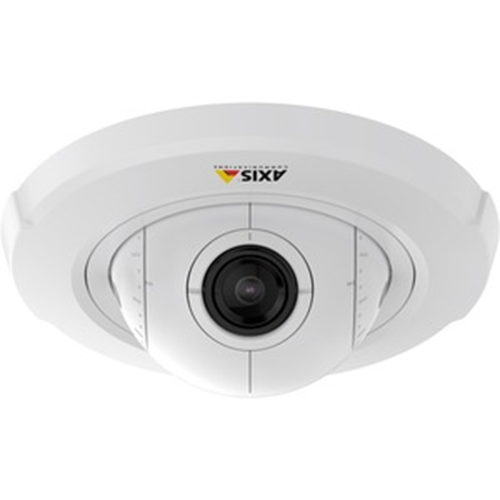

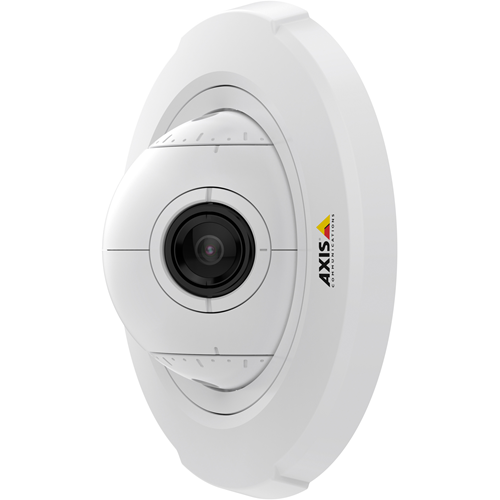

AXIS F4005 is a compact, easy-to-install recessed dome sensor unit for discreet indoor video surveillance in retail, office, and banking environments. For use with an AXIS F Main Unit, AXIS F4005 provides a 1080p resolution and a wide 1 13º horizontal field of view.

It enables WDR-Forensic Capture, ideal for scenes with very bright and dark areas. AXIS F4005 also supports Axis' Corridor Format to suit vertically oriented areas such as staircases, hallways and aisles. It comes with a 12-m (39 ft.) pre-mounted cable for connection to a main unit. A rotation tool is supplied for leveling the image.

Main Features

  • Compact, recessed dome for indoor surveillance
  • Fixed lens with 1080p resolution
  • Wide 113º horizontal field of view
  • Wide Dynamic Range - Forensic Capture (with AXIS F41/F44 Main Unit)
  • Supports Axis' Corridor Format

Antenna Type Dome
Application/Usage Indoor
Brand Name AXIS
Category Type IP Dome Cameras
Color Supported Color
Connectivity Technology Wired
Depth 4.4", 1.5"
Effective Camera Resolution 2.3 Megapixel
Environmentally Friendly Yes
Features Auto Gain Control, Automatic White Balance, Motion Detection, Motion Tracking, Privacy Masking, Wide Dynamic Range
Field of View Horizontal angle of view: 113° - Vertical angle of view: 62°
Fixed Focal Length 2.80 mm
Form Factor Dome
Graphics Modes Full HD
HD Recording Yes
Image Sensor CMOS
Image Sensor Type RGB CMOS, CMOS
Indoor/Outdoor Indoor
Lens Type Fixed
Limited Warranty 5 Year, 3 Year
Longest Shutter Speed 2 Second
Manufacturer Axis Communications
Model 0798-001
Maximum Aperture f/2
Maximum Focal Length 2.80 mm
Maximum Frame Rate 60 fps
Maximum Operating Temperature 131°F (55°C)
Maximum Video Resolution 1920 x 1080, 1920 x 1200
Minimum Operating Temperature -30°F (-34.4°C)
Mount Type Recessed Mount
Network (RJ-45) Yes
Operating Humidity 85%
Plug/Connector Type F
Product Series F, HD
Product Type Network Camera
Remote Management Yes
Shortest Shutter Speed 1/143000 Second
Vendor Name Axis Communications Inc
Weight (Approximate) 1.17 lb
Width 1.5"
