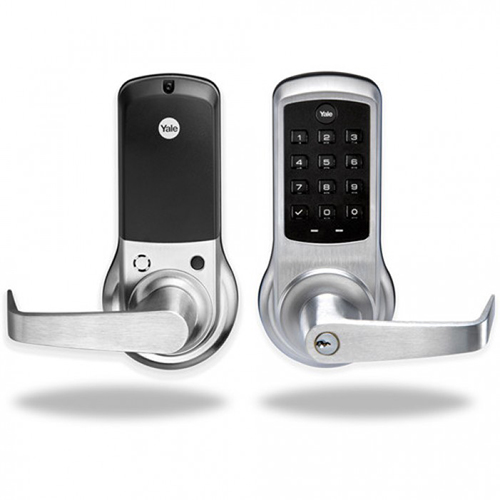

Yale nexTouch Electromechanical Lock

nexTouch combines a modern look and innovative access control technology with an array of bold new features, offering an attractive access control solution to a range of facilities. With a heavy-duty design and ANSI/BHMA Grade 1 certification, nexTouch provides durable and reliable security from a brand trusted for over 170 years.

Main Features

• ANSI/BHMA: A156.2, Series 4000 Grade 1
• UL/cUL: UL/cUL fire-rated up to 3 hours
• Windstorm: Certified (refer to local codes)
• Backset: 2-3/4" standard
• Latchbolt: 1/2" stainless steel throw standard
• Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
• Door Thickness: Adjustable from 1-3/8" to 1-3/4"
• Fronts: 2-1/4" x 1-1/8" beveled standard; flat fronts available to order
• Cylinders: 6-pin, keyed-random cylinder with two keys furnished standard. See catalog for additional options.
• Reversibility: Non-handed, field reversible.
• Strikes: 497 ANSI strike standard.
• Levers: Available in three lever options (AU-Augusta, MO-Monroe, and PB-Pacific Beach)
• Finishes: Available in four finishes (605-Bright Brass, Clear Coated, 613E-Dark Oxidized Satin Bronze - equivalent, 626-Satin Chrome Plated and BSP-Black Suede Powder Coat)
• Warranty: 3 year limited warranty on mechanical and electrical components; one year limited warranty on the finish
