Model: HDA-100
Category: AV Antennas
Brand: Winegard - Z

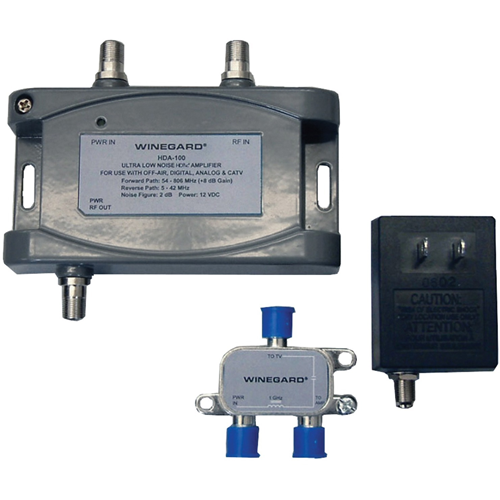

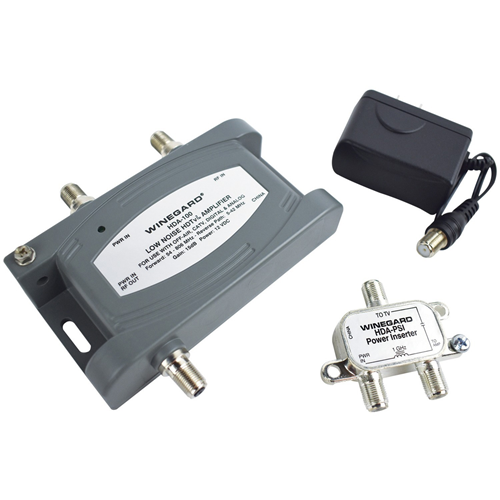

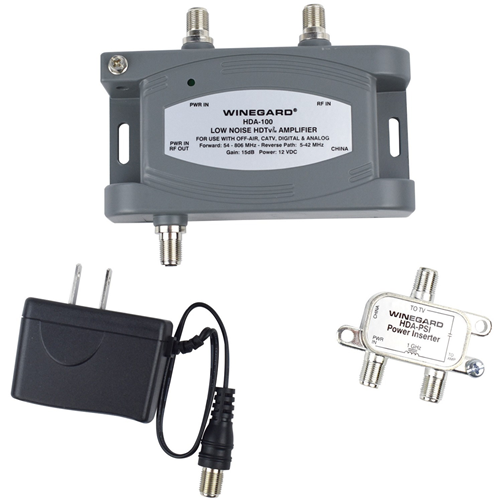

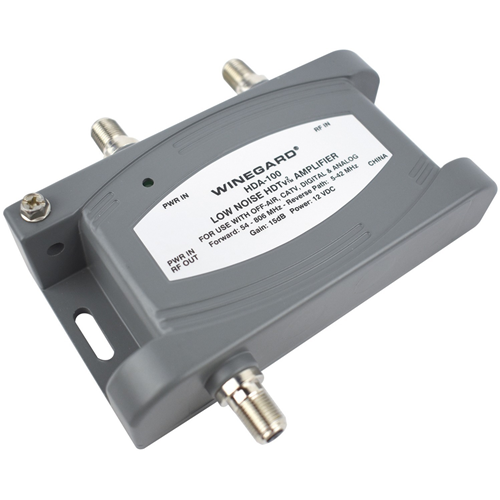

Dealer pricingThe Winegard HDA-100 is a single RF input, 15dB gain, single RF output, with a 5-42 MHz 2-way bi-pass at -2 dB loss.
| ADI Part Number | WJ-HDA100 |
| Brand Name | Winegard |
| Category Type | AV Antennas |
| Depth | 1.5" |
| Height | 3.9" |
| Input Voltage | 12 V DC |
| Manufacturer | Winegard Company |
| Model | HDA100 |
| Maximum Frequency | 1 GHz, 42 MHz, 1 GHz, 42 MHz |
| Maximum Gain | 15 dB |
| Minimum Frequency | 5 MHz, 54 MHz, 5 MHz, 54 MHz |
| Product Type | Signal Amplifier |
| Vendor Name | Winegard - Z |
| Weight (Approximate) | 9.60 oz |
| Width | 3.9", 4.9", 1.5" |
