W Box Request-to-Exit PIR Detector

Model: 0E-RXD

Category: Education Solutions, Request to Exit, Touchless Access Control, Locking Devices

Brand: W Box Technologies

Dealer pricing

The WBOX 0E-RXD combines a passive-infrared detector with relay output to allow control of door ingress and egress in request-to-exit (REX) applications. It is UL Listed as an access control device under the UL 294 standard. It is for indoor use only. 0E-RXD is not designed for use as the primary means of exit for emergency egress.

Main Features

  • Voltage input: 12 VDC or VAC; 24 VDC or 24VAC
  • Current draw: 16mA @ 12VDC (see Current Ratings on page 4)
  • NO INTERNAL BATTERY. Budget 38mAh per hour standby
  • REX detector output: 2 Form C relay contacts rated 2A 30VDC/VAC maximum for DC resistive loads
  • Indicator: Green LED for PIR detection
  • Relay latch duration: Adjustable from 0.5 second to 64 seconds
  • Timer modes: Selectable for resettable (cumulative) or non-resettable (counting)
  • Power loss operation modes: Selectable for fail safe (doors unlocked) or fail secure (doors locked)

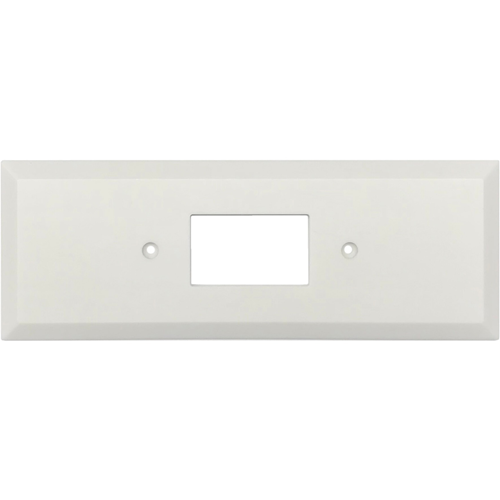

  • Optional trim plate 0E-TP

Brand Name W Box
Category Type Request to Exit
Color Gray
Connectivity Technology Wired
Depth 1.9"
Environmentally Friendly Yes
Form Factor Ceiling-mountable, Wall-mountable, Ceiling Mount, Wall Mount, Wall-mountable, Ceiling-mountable
Height 1.8"
Input Voltage 12 V DC, 24 V DC, 12 V DC, 24 V DC
Manufacturer W Box Technologies
Model RXD
Material ABS Plastic
Passive Infrared Sensor (PIR) Yes
Product Type Motion Sensor
Vendor Name W Box Technologies
Width 7", 1.8"
