Model: RX9401
Category: Fiber Products, Transmitters & Receivers
Brand: Vivotek Usa, Inc.

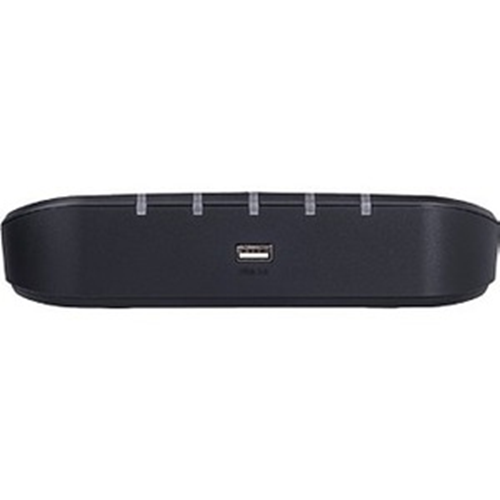

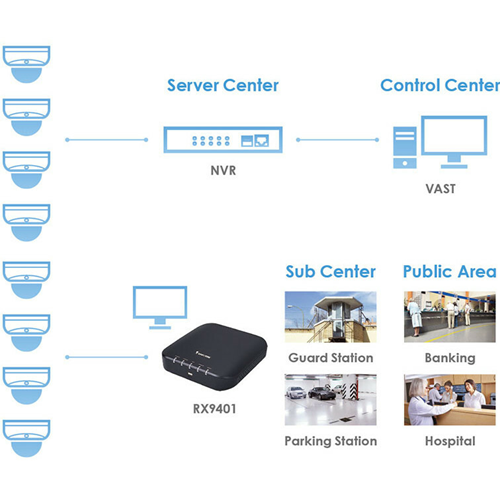

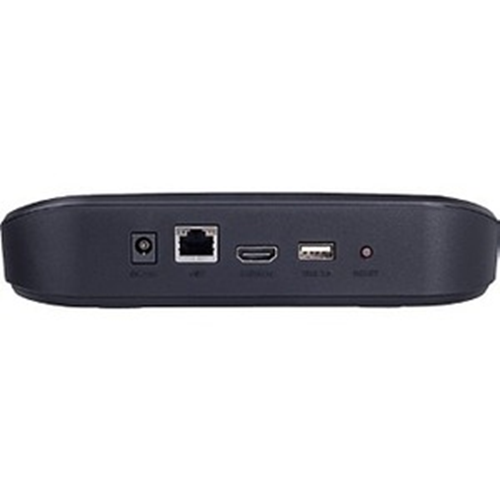

Dealer pricingVIVOTEK's RX9401 is an H.265 Single-Channel Ultra-HD Video Receiver. Delivering high-quality and detailed images, it is equipped for up to 16-CH network cameras and a maximum network camera resolution of 8-Megapixels. The RX9401 can drive an HD monitor directly via HDMI, and supports decode options of 4K 30 fps, four H.265 1080p 120 fps, nine H.265 720p 270 fps, or sixteen H.265 D1 480 fps. The RX9401 offers a more cost-effective and PC alternative solution with no costly VMS client fee, no HDD noise and no failure issues. It is suitable for standalone viewers through local viewing. Secured and simplified IT management reduce the requirement for end user training, further reducing long-term costs.
Highlight FeaturesVarious Split-window Layout & Fisheye Dewarp Support
The RX9401 provides various split modes for layout display (1x1, 2x2, 3x3, 1P+3, 2P+3, 1M+5, 1P+6, 3V, 1M+12, 4x4) and supports VIVOTEK's fisheye camera Fisheye Dewarp function, which provides multiple dewarping modes to ensure the correct angle of video view and detailed information for flexible usage.
Battery Size | C |
Brand Name | Vivotek |
Category Type | Transmitters & Receivers |
Connectivity Technology | Wired |
Depth | 1.9", 7.8", 7.9" |
Environmentally Friendly | Yes |
Ethernet | Yes |
Frame Rate | 480 Frames Per Second |
HD Recording | Yes |
HDMI | Yes |
Height | 1.9" |
Limited Warranty | 24 Month |
Manufacturer | Vivotek, Inc |
Model | RX9401 |
Maximum Frame Rate | 480 fps |
Maximum Resolution | 3840 x 2160 |
Maximum Video Resolution | 3840 x 2160 |
Number of PoE+ (RJ-45) Ports | 16 |
Product Series | C |
Product Type | Video Surveillance Station |
Remote Management | Yes |
Standard Memory | 1 GB |
System Components | Network Video Recorder |
Total Number of Channels | 16 |
USB | Yes |
Vendor Name | Vivotek Usa, Inc. |
Video Formats | Motion JPEG, H.264, H.265, Motion JPEG, H.264, H.265 |
Weight (Approximate) | 1.17 lb |
Width | 7.8", 7.9" |
