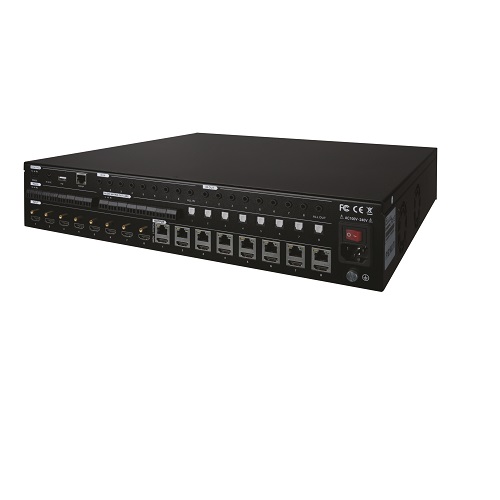

4K HDBaseT 8×8 Matrix with ARC, IR, IP and RS-232

Model: EVMX88PRO

Category: HDMI Matrix

Brand: Vanco

Dealer pricing

Features

4K 8×8 HDBaseT Matrix with mirrored HDMI outputs
Extends4K@60Hz4:4:4, and HDR10 up to 131ft/40m over a single Cat6 cable
Outputs4K@60Hz4:4:4, HDR10 and Dolby Vision on the HDMI inputs and HDMI outputs
Extends 1080p resolution up to 230ft/70m over a single Cat6 cable
HDCP 2.2 compliant
Two receiver options that are sold separately (EVRXHD2 and EVRXDSC) based on features required
Features POC (Power over Cable) technology – providing power for either receiver option
Downscales 4K to 1080p on all HDMI outputs as well as HDBaseT outputs using EVRXDSC receiver
ARC (Audio Return Channel) capable with EVRXDSC receiver
Includes built-in audio matrix with digital and analog audio outputs for up to 8 zones
Built-in EDID management and advanced HDCP handling
Controllable via front panel, IR, RS-232 and third party control systems, as well as a built in GUI via IP connection
Features IR, IP and RS-232 for control
Includes EV-IRMST IR integration cable for seamless integration with 3rd Party IR Systems
Dimensions: 17.2” W x 3.5” H x 17.3” D
