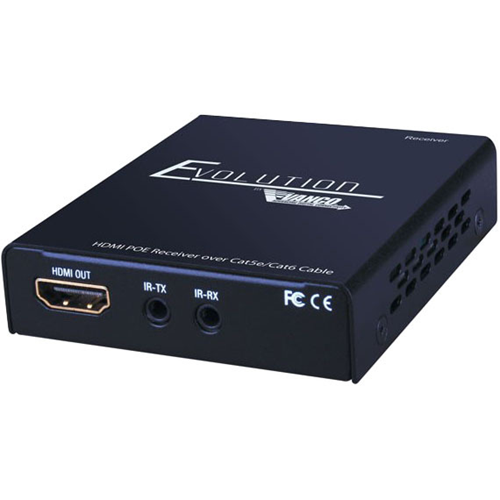

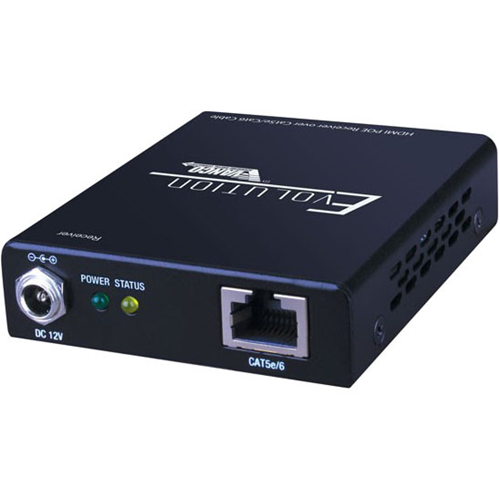

Vanco Evolution HDMI POE Receiver
Vanco Evolution HDMI POE Receiver

Vanco Evolution HDMI POE Receiver

Model: EVRX2006

Category: Video Accessories, HDMI Extenders

Brand: Vanco

Dealer pricing

Package Contents

  • HDMI® POE Receiver EVRX2006
  • IR TX
  • IR RX
  • Product Manual
Main Features
  • To be utilized with Evolution by Vanco matrix units or splitters that transmit HDMI signals over a single Cat5e/6 cable and feature Power over Ethernet (PoE) Technology
  • Allows HDMI audio/video signals to be transmitted using a single Cat5e or Cat6 Cable
  • Features Power over Ethernet (PoE) Technology which transmits power over Cat5e/Cat6; No power supply needed on the receiver end
  • Slim and compact design
  • Wide band Bi-directional IR system allowing for control of source or display (IR accessories included)
  • Wideband IR signal from 20KHz to 60KHz
  • Transmission Range: Extends HDMI transmission up to 50m (164ft) from the HDMI source at Full HD 1080p 24-bit color and 3D
  • Features Auto EDID and EQ Management
  • Works with HDMI and HDCP compliant devices
  • HDCP 2.0 compliant
  • Pure uncompressed 7.1ch digital audio
  • Supports DTS-HD and Dolby TrueHD high bit rate audio
  • Dimensions: 2.7” (68.58mm) W x .7” (17.78mm) H x 3.25” (82.55mm) D
  • Patent No. 9,710,038 B1

Brand Name Vanco
Category Type HDMI Extenders
Connectivity Technology Wired
Environmentally Friendly Yes
Graphics Modes Full HD
HDMI Out Yes
Manufacturer Vanco International, Inc
Model EVRX2006
Maximum Operating Distance 164.04 ft
Maximum Video Resolution 1920 x 1080
Media Type Supported Twisted Pair
Network (RJ-45) Yes
Number of HDMI Outputs 1
Number of Network (RJ-45) Ports 1
Number of Output Devices Supported 1
Packaged Quantity 1
Product Line Evolution
Product Type Video Extender Receiver
Receiver Depth 3.25"
Receiver Height 0.70"
Receiver Width 2.70"
Transmitter Depth 3.25"
Transmitter Height 0.70"
Transmitter Width 2.70"
Twisted Pair Cable Standard Category 6
Vendor Name Vanco
