Vanco 4K HDMI 1×2 Splitter with EDID and Scaling
Vanco 4K HDMI 1×2 Splitter with EDID and Scaling

Vanco 4K HDMI 1×2 Splitter with EDID and Scaling

Model: EVSP12SC

Category: Video Accessories, HDMI Distribution

Brand: Vanco

Dealer pricing

Main Features:

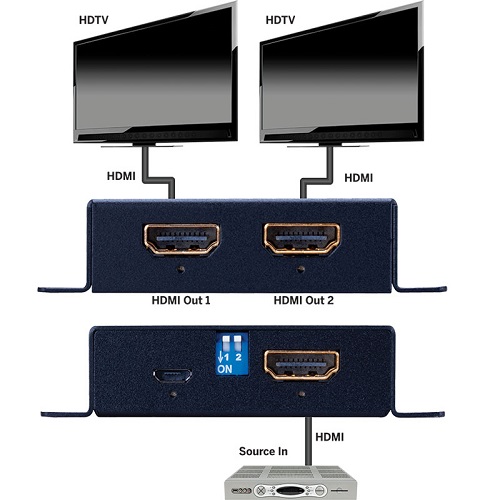

  • Transmits audio and video from a single source to 2 HDMI outputs up to 4K2K (2160p) Ultra High Definition resolution without any loss of quality or resolution
  • Supports 4K and 1080p resolutions simultaneously; downscales to 1080p for lower resolution displays while maintaining 4K on other outputs
  • Supports up to 4K@60Hz with 8 bit YCBCR and 4:4:4 color sampling
  • Supports up to 4K@60Hz with 10 bit YCBCR, 4:2:0 color sampling and HDR
  • HDCP 2.2 and 1.4 compliant
  • Wide frequency range: 25MHz~600MHz
  • High bandwidth:18Gbps
  • Features EDID management
  • Micro-USB firmware update for expanding compatibility
  • Dimensions: 3.75" W x 2.25" H x 1.6" D

Brand Name Vanco
Category Type HDMI Distribution
Depth 1.6"
Environmentally Friendly Yes
HDMI In Yes
HDMI Out Yes
Height 1.6", 2.3", 3.8"
Input Voltage 5 V DC
Manufacturer Vanco International, Inc
Model EVSP12SC
Maximum Frequency 600 MHz
Maximum Video Resolution 3840 × 2160
Minimum Frequency 25 MHz
Number of +12V Rails 2
Number of HDMI Inputs 1
Number of HDMI Outputs 2
Output Voltage 5 V DC
Packaged Quantity 1
Product Line Evolution
Product Type Signal Splitter
USB Yes
Vendor Name Vanco
Width 3.8"
