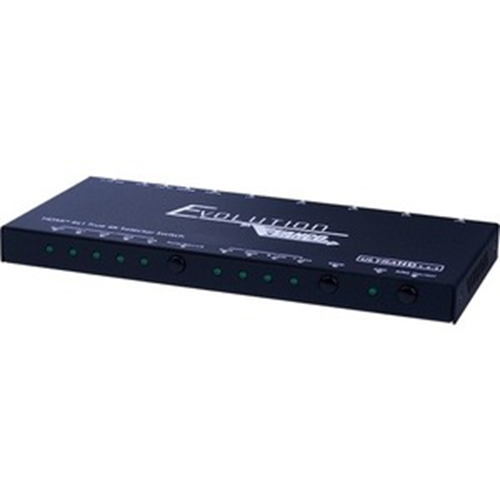

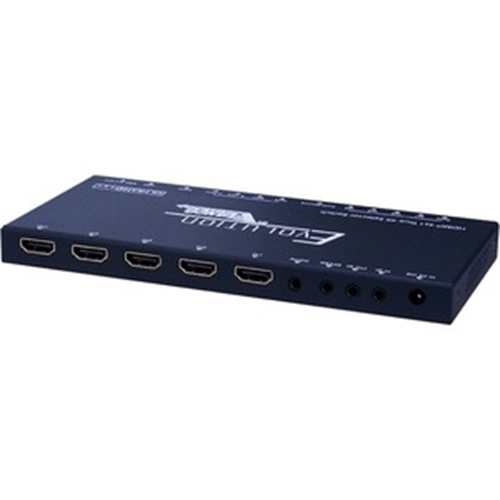

Vanco Evolution 4K 4x1 HDMI Switch with ARC and HDR

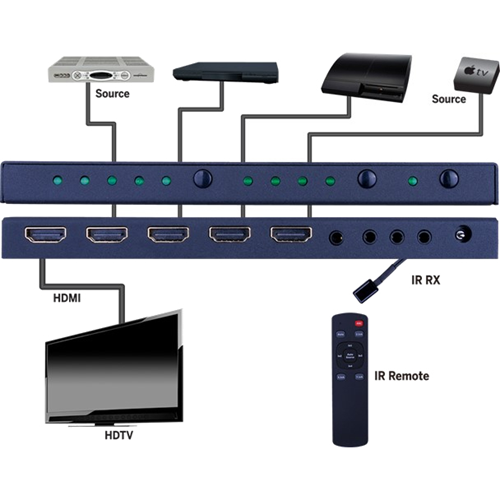

The Evolution by Vanco HDMI 4x1 Switcher (EVSW1042) allows 4 HDMI sources to be distributed to 1 display, with the ability of controlling each source connected and input switching from the display remotely via IR. Allows multiple sources to be switched on a single display by creating additional HDMI inputs.

The EVSW1042 is capable of up to 4K/60Hz Ultra High Definition resolution, 4:4:4 chroma capability, and HDR with HDCP 2.2, making this unit the most up to date HDMI switcher for 4K transmission. Also features EDID management for audio, which allows selection of a preferred type of audio transmission.

Equipped with ARC (Audio Return Channel) functionality, which allows the connected ARC equipped display to send audio data “upstream” to an ARC equipped A/V receiver or surround audio controller, via toslink or stereo output for expanded audio distribution.

In addition, the EVSW1042 features RS-232 for control of the main switching until as well as IR routing, which allows for remotre source control at the display location. The result is a great solution for HDMI switching which offers multiple features and full 4K capability, the EVSW1042 4x1 Switcher is a great choice for any application.

Main Features

• Supports 4K2K (2160p @60Hz w/ 4:4:4 color sampling) Ultra High Definition Resolutions
• Supports HDR (High Dynamic Range)
• Features Audio EDID management which allows selection of preferred audio channel
• Supports auto switching or manual switching mode

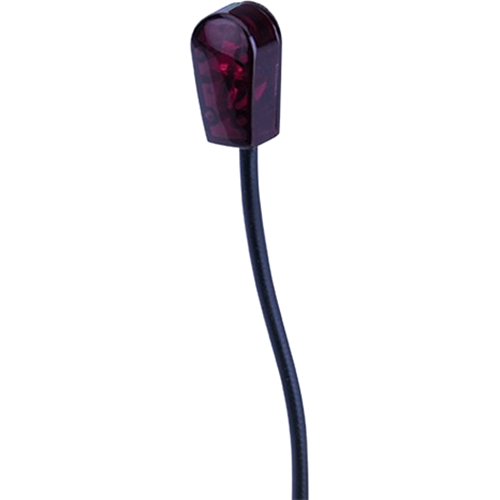

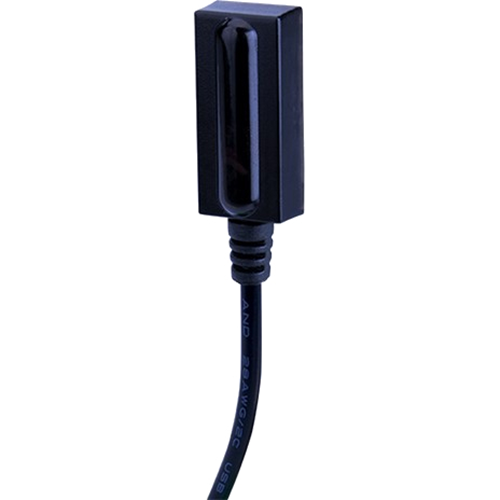

• IR pass-through for source control with included IR accessories
• Controllable via RS-232 and/or IR
• Supports ARC (Audio Return Channel) and CEC (Consumer Electronic Control) functionality
• Supports PCM- Dolby TrueHD- and DTS-HD Master Audio up to 7.1 CH audio formats
• Digital and analog audio outputs for audio extraction
• HDCP 2.2 compliant
• 5V DC Power Supply
• Dimensions: 7” W x .5” H x 3.3” D
