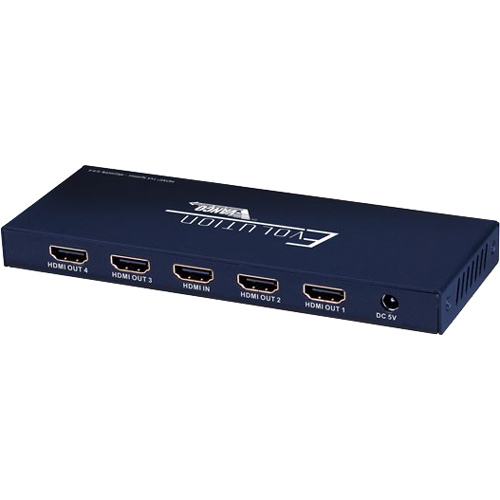

Vanco Evolution Premium 4K HDMI 1x4 Splitter

The Evolution by Vanco EVSP4K12, EVSP4K14 and EVSP4K18 with HDCP 2.2, 4K/60Hz, and 4:4:4 chroma capability, are the most up to date HDMI splitters that are compliant with HDCP 2.2 displays and sources. Also features EDID management, with different modes to ensure compatibility with source and display combinations. Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio for advanced audio setups. Take any 4K source and split the signal to multiple 4K displays to ensure the highest quality possible with the Evolution 4K HDMI Splitters!

Main Features

• Transmits audio and video from a single source to 4 HDMI outputs up to 4K2K (2160p) Ultra High Definition resolution without any loss of quality or resolution
• Supports video formats up to4K2K@60Hzwith 12bit YCBCR 4:4:4 and HDR
• 3D frame sequential video format up to1080p@60
• Supports high resolution VESA mode video format up to QSXGA 2560×2048@60Hz
• Compliant with HDCP 2.2 sources and backwards compatible with older versions of HDCP
• Dynamic and Manual EDID management modes to ensure compatibility during installation
• Supports LPCM 7.1CH- Dolby TrueHD- and DTS-HD Master Audio
• Supports Hot-plug
• High bandwidth: 18 Gbps

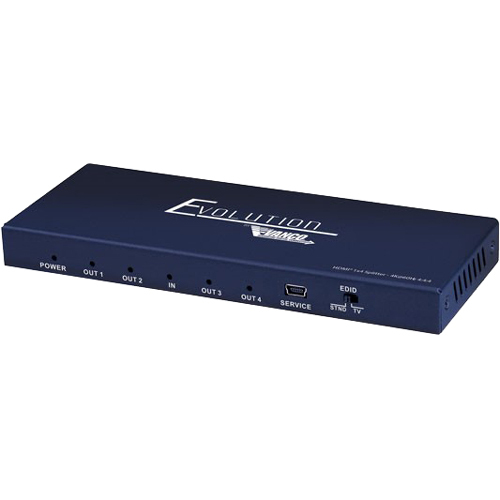

• Features status indicator for connection & input HDCP compliance

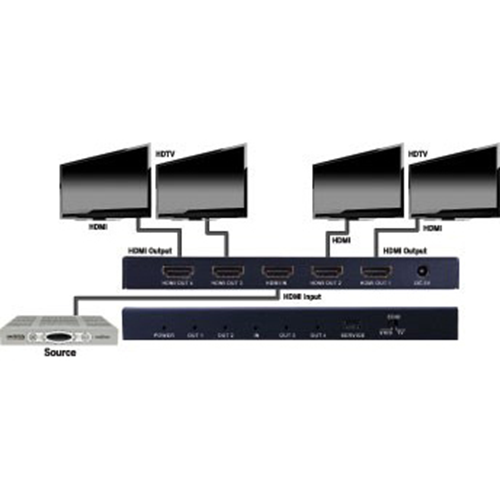

• Can be cascaded with other Evolution by Vanco products to create additional output options or to create an expanded distribution system
• Dimensions: 6.4” W x .6” H x 2.5” D
