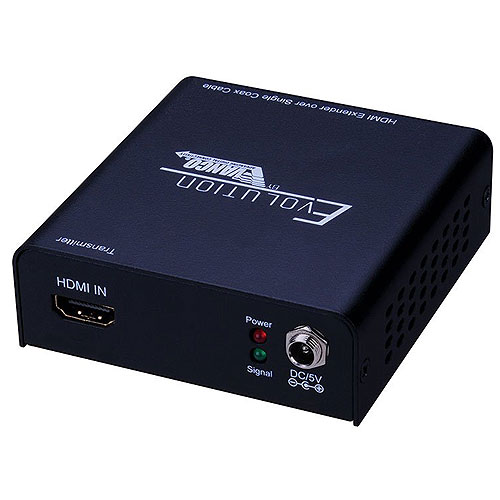

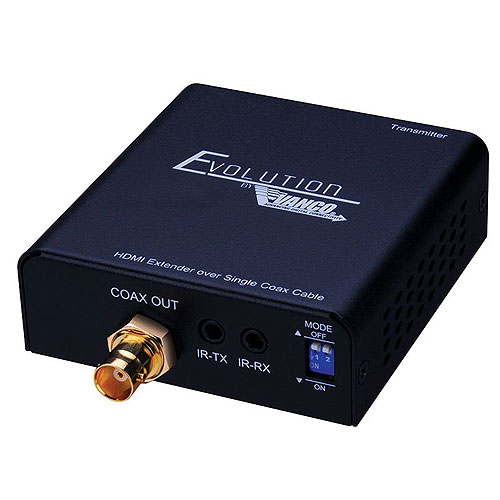

Vanco Evolution HDMI over Single Coax Extender

Model: EVEX2004

Category: Video Accessories, HDMI Extenders

Brand: Vanco

Dealer pricing

Main Features

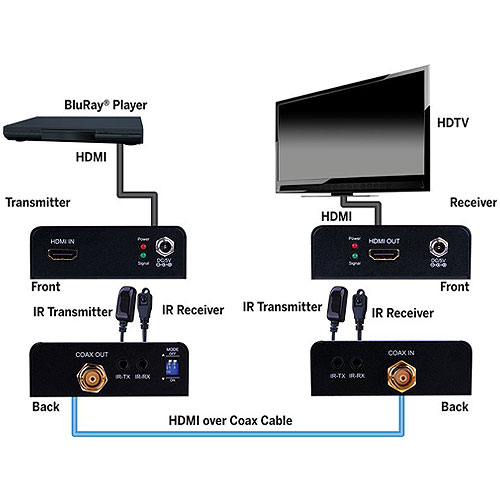

Allows HDMI audio/video signals to be transmitted using a single coaxial cable
Wide band Bi-directional IR system (20KHz to 60KHz) allowing for control of source or display
Transmission Range: Extends 1080p resolution up to 394ft/120m over RG6 coaxial cable (dual and quad-shielded); Extends 1080p resolution up to 164ft/50m over RG59 coaxial cable
Works with HDMI and HDCP compliant devices
Supports up to 1080p/60 High Definition resolution
Supports video resolutions 480i- 576i- 720p- 1080i- and 1080p
7.1-channel audio supported; Supports DTS-HD and Dolby TrueHD high bit rate audio
EDID manual select control – Supports Copy EDID
Compact and wall mounting housing design for easy and robust installation
Fully compatible with any Evolution by Vanco product
Dimensions: 3.35” (85mm) W x 1.1” (28mm) H x 3.19” (81mm) D

Brand Name	Vanco
Button Size	1.10"
Cable Type	Coaxial
Category Type	HDMI Extenders
Connectivity Technology	Wired
Environmentally Friendly	Yes
Graphics Modes	Full HD
HDMI In	Yes
HDMI Out	Yes
Input Voltage	5 V DC
Manufacturer	Vanco International, Inc
Model	EVEX2004
Maximum Operating Distance	394 ft
Maximum Video Resolution	1920 x 1080
Media Type Supported	Coaxial
Number of HDMI Inputs	1
Number of HDMI Outputs	1
Number of Input Devices Supported	1
Number of Output Devices Supported	1
Operating Range	3.35"
Output Voltage	5 V DC
Packaged Quantity	1
Product Line	Evolution
Product Type	Video Extender Receiver
Receiver Depth	3.19"
Receiver Height	1.10"
Receiver Width	3.35"
Vendor Name	Vanco
