Vanco Evolution Premium 4K HDMI 1x2 Splitter
Vanco Evolution Premium 4K HDMI 1x2 Splitter

Vanco Evolution Premium 4K HDMI 1x2 Splitter

Model: EVSP4K12

Category: Video Accessories, HDMI Distribution

Brand: Vanco

Dealer pricing

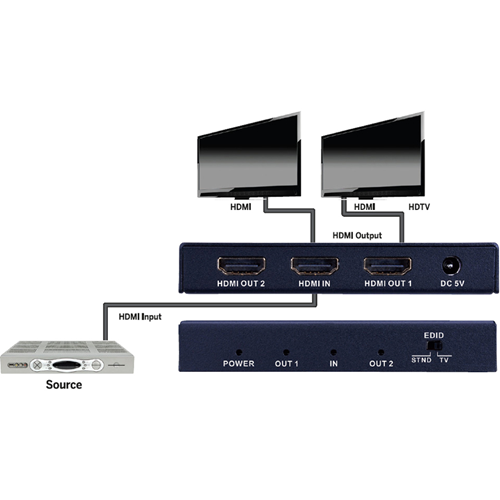

The Evolution Premium 4K HDMI® 1x2 Splitter transmits audio and video from a single source to 2 HDMI outputs up to 2160p Ultra High Definition resolution.
Main Features
  • Transmits audio and video from a single source to 2 HDMI outputs up to 4K2K (2160p) Ultra High Definition resolution without any loss of quality or resolution
  • Supports video formats up to 4K2K@60Hz with 12bit YCBCR 4:4:4 and HDR
  • 3D frame sequential video format up to 1080p@60
  • Supports high resolution VESA mode video format up to QSXGA 2560×2048@60Hz
  • Compliant with HDCP 2.2 sources and backwards compatible with older versions of HDCP
  • Dynamic and Manual EDID management modes to ensure compatibility during installation
  • Supports LPCM 7.1CH- Dolby TrueHD- and DTS-HD Master Audio
  • Supports Hot-plug
  • High bandwidth: 18 Gbps
  • Features status indicator for connection & input HDCP compliance
  • Can be cascaded with other Evolution by Vanco products to create additional output options or to create an expanded distribution system
  • Dimensions: 4” W x .4” H x 2.3” D

Brand Name Vanco
Category Type HDMI Distribution
Depth 2.3"
Environmentally Friendly Yes
HDMI In Yes
HDMI Out Yes
Height 0.4", 2.3"
Input Voltage 5 V DC
Manufacturer Vanco International, Inc
Model EVSP4K12
Maximum Operating Range 4"
Maximum Video Resolution 4096 x 2160
Number of +12V Rails 2
Number of HDMI Inputs 1
Number of HDMI Outputs 2
Output Voltage 5 V DC
Packaged Quantity 1
Product Line Evolution
Product Type Signal Splitter
Vendor Name Vanco
Width 0.4", 4"
