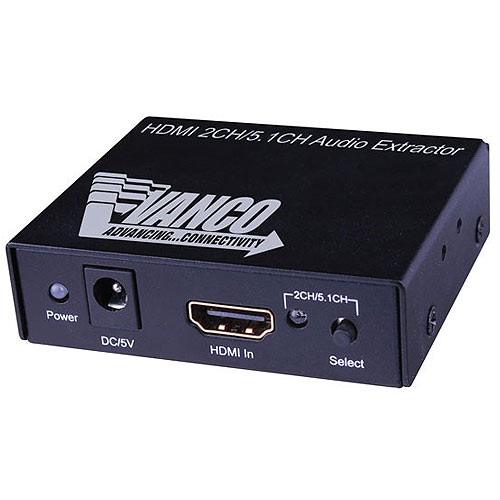

Vanco HDMI Audio Extractor

Model: 280573

Category: Video Accessories, HDMI Distribution

Brand: Vanco

Dealer pricing

Main Features

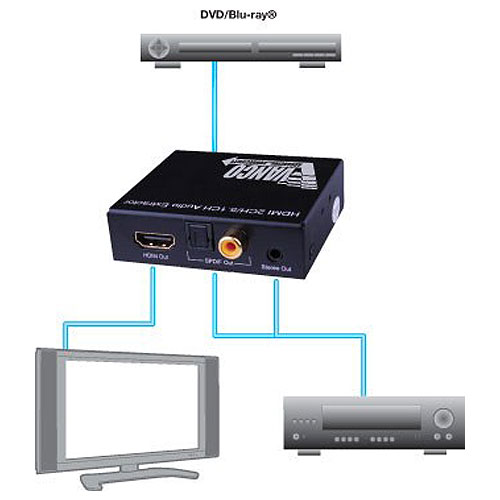

Use to extract audio signals from an HDMI source
Allows simultaneous output of toslink or coaxial digital and stereo 3.5mm analog audio signals
Supports 2.0CH/5.1CH audio switch
Supports High Definition Resolution 1080p and 3D
Supports 225 MHz/2.25 Gbps Per Channel Bandwidth (6.75 Gbps All Channels)
Supports 12 Bit per Channel Deep Color- 36 Bit Total
Supports Uncompressed Audio LPCM (Linear Pulse Code Modulation)
Supports Compressed Audio DTS Digital- Dolby Digital (DTS-HD and Dolby True HD)
HDCP Compliant
Power Supply: 5V DC- UL Listed
Dimensions: 2.75″ W x .75″ H x 2.378″

Audio Line Out	Yes
Brand Name	Vanco
Category Type	HDMI Distribution
Depth	2.8", 2.4", 0.8"
Environmentally Friendly	Yes
Form Factor	External
Functions	Signal Conversion, Audio Extraction, Audio Extraction, Signal Conversion
HDMI	Yes
Height	0.8"
Manufacturer	Vanco International, Inc
Model	280573
Maximum Resolution	1920 x 1080
Maximum Video Resolution	1920 x 1080
Product Type	Signal Converter
Vendor Name	Vanco
Width	2.4", 2.8"
