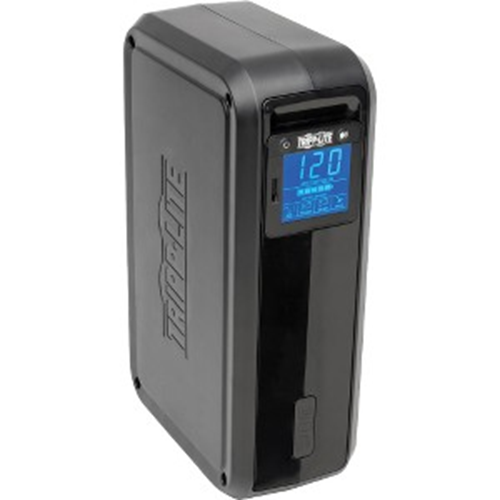

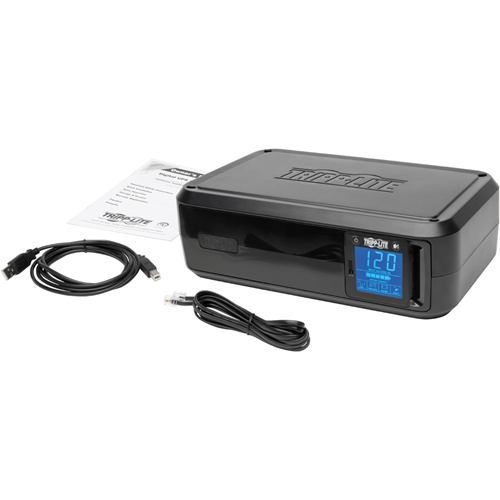

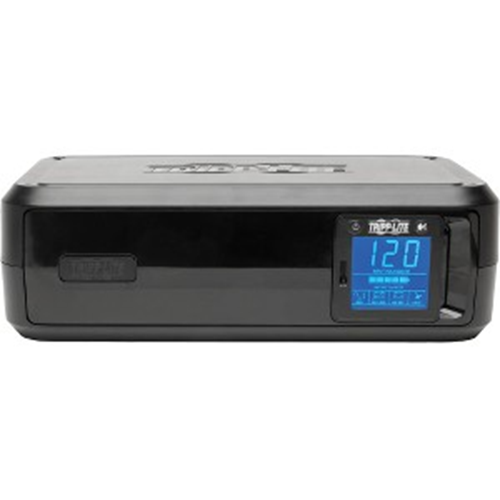

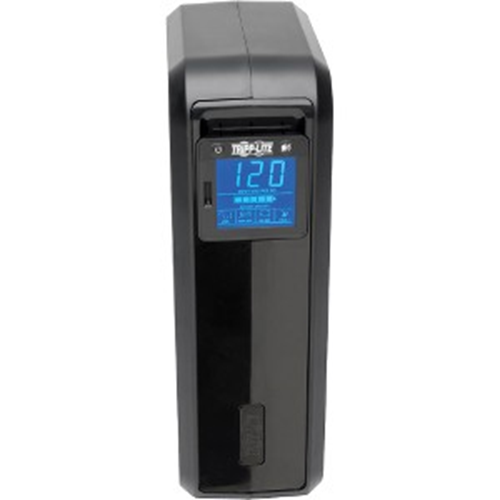

UPS 1000VA, LCD DISPLAY

Model: SMART1000LCD

Category: Enterprise Power Products, Enterprise Uninterrupted Power Supplies

Brand: Tripp Lite

Dealer pricing

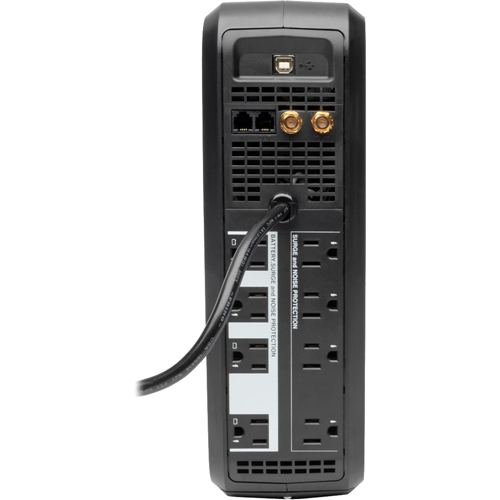

Line-Interactive Digital UPS System offers voltage regulation, surge suppression and battery support for personal computers, network workstations and more. Internal UPS circuits support entry-level PCs for 60 minutes or individual VCR/DVR for 3 hours during power failure. AVR circuits regulate brownouts as low as 89 volts back to usable levels without using battery power. Includes 4 battery-supported outlets, plus 4 surge suppression-only outlets.

USB port enables optional unattended system shutdown without data loss; cable included. HID-compliant USB interface enables integration with built-in power management and auto shutdown of Windows, Mac OS X and Linux. Built-in single-line RJ-11 phone suppression jacks protect modem and satellite receiver with standard dialup/DSL phone connection. 2.2 GHz coaxial jacks protect against surges on CATV, satellite or broadcast antenna connections. 3 minute battery runtime with full load of 1000VA/500W and 10 minutes with half load of 500VA/250W.

Main Features

  • 1000VA / 700W Battery Backup Uninterruptible Power Supply (UPS)
  • APC Smart Connect is the first cloud-enabled UPS for distributed IT. View the status of your UPS on a secure portal via any internet connected device, receive notifications, firmware updates and more
  • 1 Additional Year of Battery Warranty for FREE when you connect and register your Smart-UPS with SmartConnect (see below "Getting Started is Easy…" for connection process)
  • 8 Total Battery Backup & Surge Protected Outlets
  • Pure sine wave output while on battery provides the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics
  • Automatic Voltage Regulation (AVR) adjusts high and low voltages to a safe level, ensuring your equipment had reliable power and preserving the life of the battery

Assembly Required No
Backup/Run Time (Full Load) 3 Minute
Backup/Run Time (Half Load) 10 Minute
Backup/Run Time (With Optional Battery) 8 Hour
Battery Life 6 Year
Brand Name Tripp Lite
Category Type Enterprise Uninterrupted Power Supplies
Color Black
Dataline Protection RJ-11
Depth 4.8"
Environmentally Friendly Yes
Form Factor Tower
Height 10.4", 4.8"
Input Voltage 120 V AC
Limited Warranty 3 Year
Load Capacity 1000 VA/500 W
Manufacturer Tripp Lite by Eaton
Model SMART1000LCD
Maximum Operating Temperature 122°F (50°C), 122°F (50°C)
Output Voltage 120 V AC
Packaged Quantity 1 Each
Plug/Connector Type NEMA 5-15P
Product Line SmartPro
Product Type Line-interactive UPS
Rack Height 2U
Receptacle Detail 4 x NEMA 5-15R
Receptacle Type NEMA 5-15R
Recycled No
Surge Energy Rating 1038 J
Transfer Time 4 ms
Typical Battery Recharge Time 8 Hour
USB Yes
Vendor Name Tripp Lite
Weight (Approximate) 14.60 lb
Width 15.6"
