TRENDnet 6-Port Hardened Industrial Gigabit Ultra PoE DIN-Rail Switch

TRENDnet's TI-UPG62 is a reliable IP30 unmanaged DIN-rail Ultra PoE switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit Ultra PoE ports, 240 W PoE power budget, two dedicated SFP slots, and a 12 Gbps switching capacity. Dual redundant power inputs and a power failure alarm relay.

Ultra PoE
A 240 watt PoE power budget supplies up to four Power over Ethernet devices with PoE (15.4 W), PoE+ (30 W) or Ultra PoE (60 W) power.

Fault Tolerance

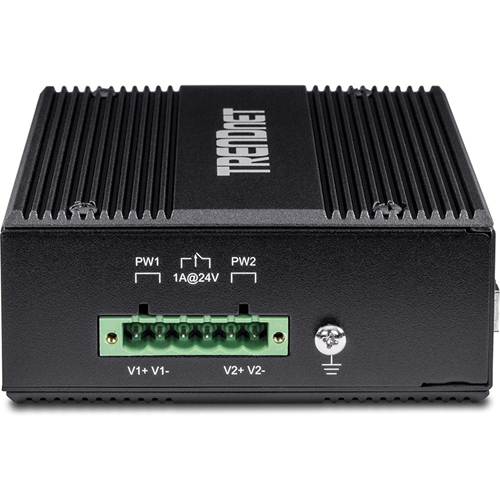

Features dual redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure.

Industrial Hardened Design
Equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate with a wide temperature range (- 40 - 75 °C (- 40 - 167 °F)) for harsh environments.

PoE Power Budget
A 240 watt PoE power budget supplies up to four Power over Ethernet devices with PoE (15.4 W), PoE+ (30 W) or Ultra PoE (60 W) power.

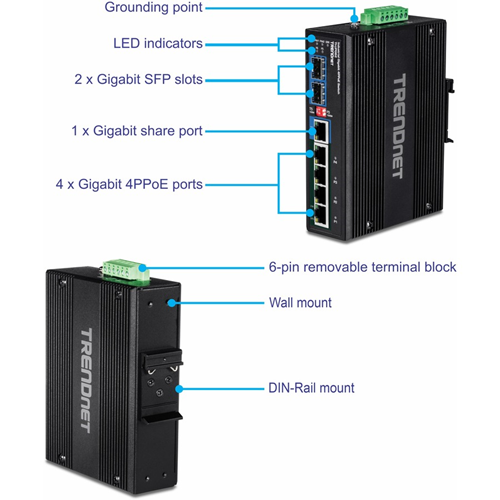

Network Ports

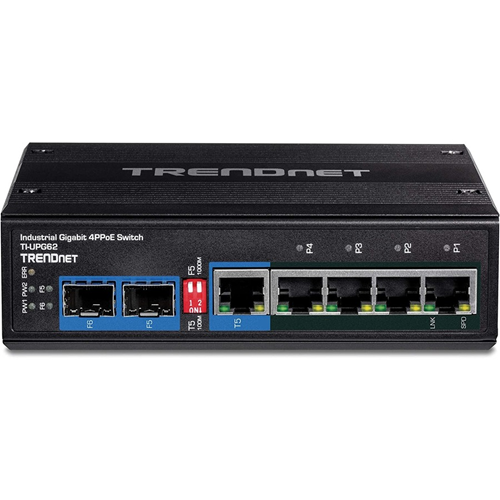

4 x Gigabit Ultra PoE ports and 2 x dedicated SFP slots

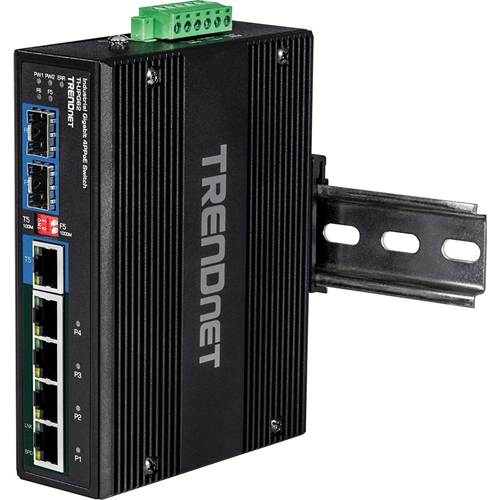

DIN-Rail / Wall Mounts

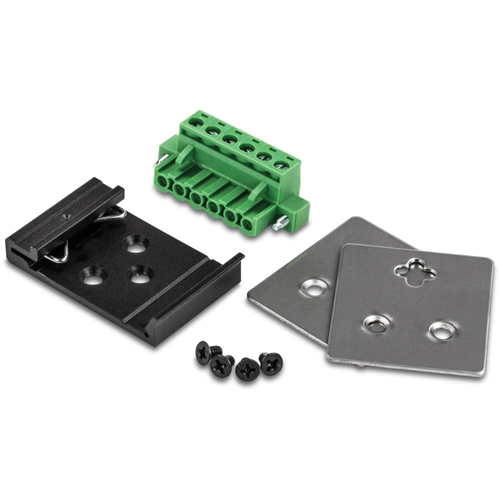

IP30 rated metal enclosure with included DIN-rail and wall mount hardware

Switching Capacity
12 Gbps switching capacity

Redundant Power
Dual redundant power inputs with overload current protection (power supplies sold separately, model TI-S24048)

Alarm Relay
Alarm relay triggered by power failure of primary and/or redundant power

Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance

Rated for Extreme Environments
Rugged IP30 rated enclosure designed to withstand a high degree of vibration, shock, and operate within a wide temperature range (- 40 - 75 °C (- 40 - 167 °F)) for harsh environments.

Electro Magnetic Compliance
Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards

Certifications
Rated for information technology (ITE) equipment (EN55022/24); industrial, scientific, and medical (ISM) Equipment (EN55011)

Shock and Vibration Resistant
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

Grounding Point
Grounding point protects equipment from external electrical surges
