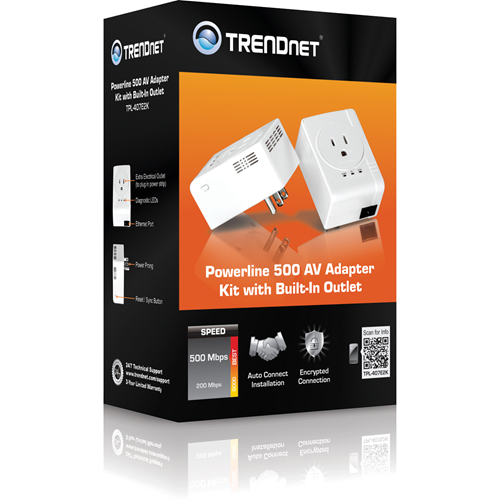

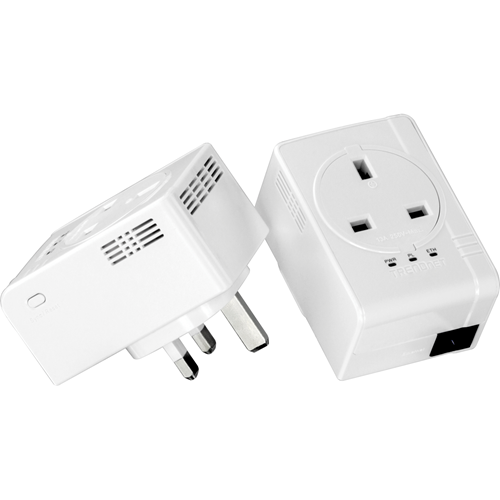

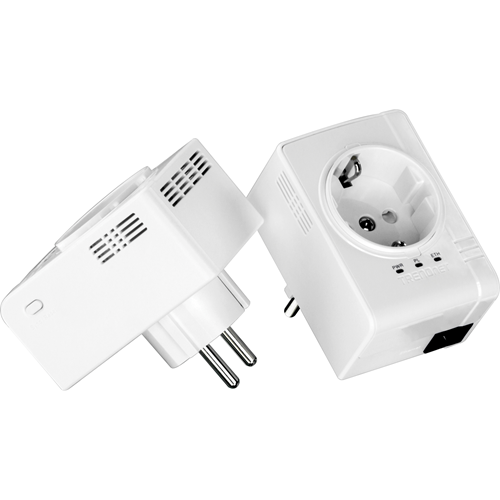

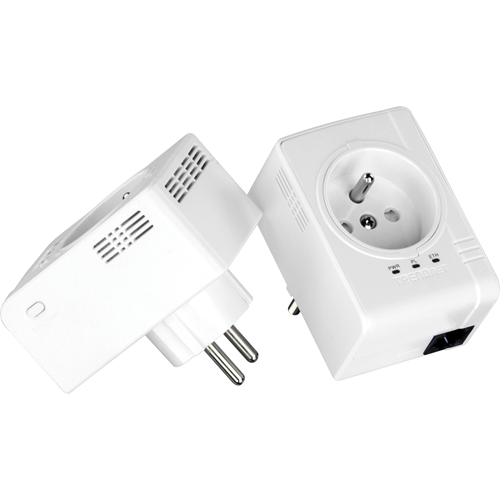

TRENDnet 500 AV Compact Powerline Adapter Kit /w Pass Through
TRENDnet 500 AV Compact Powerline Adapter Kit /w Pass Through

TRENDnet 500 AV Compact Powerline Adapter Kit /w Pass Through

Model: TPL-407E2K

Category: Powerline Ethernet Adapters

Brand: Trendnet

Dealer pricing

ThePowerline 500 AV Nano Adapter Kit with Built-In Outlet, model TPL-407E2K, uses existing electrical lines to create a secure high speed network. Connect the first adapter to your network and plug the second adapter into an outlet on your electrical system for instant high speed network access. The compact form factor saves space and offers an additional electrical outlet, built into the front of the housing to power computers and other devices. A noise filter maintains optimum connection speeds when devices such as computers, televisions, and gaming consoles create electrical background noise.

Main Features
  • Includes two TPL-407E adapters
  • Networking with electrical outlets
  • Never lose an electrical outlet with the built in socket
  • Compact form factor saves space
  • Up to 80% power savings

Audio Line In No
Audio Line Out No
BNC No
Brand Name TRENDnet
Depth 8"
Environmentally Friendly Yes
Ethernet Technology Fast Ethernet
Height 3"
Input Voltage 110 V AC, 220 V AC, 110 V AC, 220 V AC
Limited Warranty 3 Year
Model TPL-407E2K
Maximum Distance Supported 984.25 ft
Maximum Operating Frequency 68 MHz
Minimum Operating Frequency 2 MHz
Modulation BPSK, 64QAM, DBPSK, 256QAM, OFDM, QPSK, 8QAM, 1024QAM, 1024QAM, 256QAM, 64QAM, 8QAM, BPSK, DBPSK, OFDM, QPSK
Network (RJ-45) Yes
Number of +12V Rails 2
Number of Network (RJ-45) Ports 1
Packaged Quantity 1, 2
Phone Line (RJ-11) No
PoE (RJ-45) Port No
Powerline Data Transfer Rate 500 Mbit/s
Powerline Transmission Standard HomePlug AV
Product Condition New
Product Type Powerline Network Adapter
USB No
Vendor Name Trendnet
Weight (Approximate) 1.87 lb
Width 7", 3"
Wireless LAN No
