TRENDnet Intelligent 1000Base-T to 1000Base-SX Multi-Mode Fiber Converter
TRENDnet Intelligent 1000Base-T to 1000Base-SX Multi-Mode Fiber Converter

TRENDnet Intelligent 1000Base-T to 1000Base-SX Multi-Mode Fiber Converter

Model: TFC-1000MSC

Category: Media Converters

Brand: Trendnet

Dealer pricing

  • Functions as a standalone converter
  • Compatible with TRENDnet's TFC-1600 fiber chassis system
  • SC-type 1000Base-SX Multi-Mode fiber port
  • Fiber networking over distances of up to 550 meters (1800 ft.)
  • 2 Gbps switching capacity
  • LEDs convey power and copper/fiber link and activity
  • Lifetime TRENDnet Manufacturer's Warranty

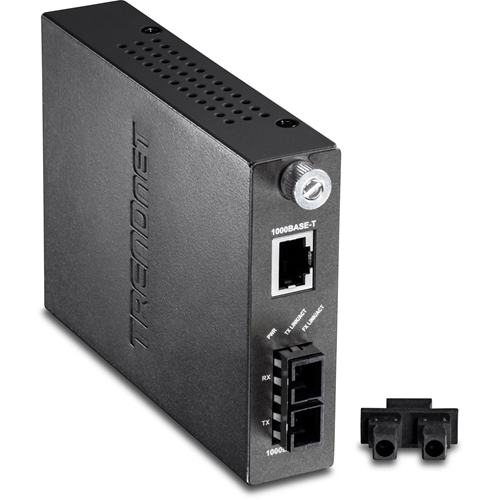

TRENDnet's TFC-1000MSC, Intelligent Fiber Converter, is compatible with the TFC-1600 chassis system or functions as a standalone unit. This converter is a Multi-Mode SC-Type fiber converter that supports SNMP (when used TFC-1600MM) and spans distances up to 550 m (1,800 ft.). Ports include a 1000Base-T (RJ-45) port and a 1000Base-SX (SC-Type) fiber port. PACKAGE CONTENTS TFC-1000MSC Quick Installation Guide Power Adapter (5 V DC, 1 A)

Main Features
  • Functions as a standalone converter
  • Compatible with TRENDnet's TFC-1600 fiber chassis system
  • SC-type 1000Base-SX Multi-Mode fiber port
  • Fiber networking over distances of up to 550 meters (1800 ft.)
  • 2 Gbps switching capacity
  • LEDs convey power and copper/fiber link and activity
  • Lifetime TRENDnet Manufacturer's Warranty

Brand Name TRENDnet
Depth 10"
Environmentally Friendly Yes
Ethernet Technology Gigabit Ethernet
Fiber Mode Supported Multi-mode
Fiber Optic Mode Multi-mode
Form Factor External, Rack-mountable, External, Rack-mountable
Height 3", 6"
Input Voltage 7.5 V DC
Limited Warranty 3 Year Lifetime
Model TFC-1000MSC
Maximum Distance Supported 1804.46 ft
Media Type Supported Optical Fiber, Twisted Pair, Optical Fiber, Twisted Pair
Network (RJ-45) Yes
Network Technology 1000Base-SX, 1000Base-SX, 1000Base-T, 1000Base-T
Number of +12V Rails 2
Number of Network (RJ-45) Ports 1
Number of SC Ports 1
Packaged Quantity 1
Power Consumption 7.20 W
Product Condition New
Product Type Transceiver/Media Converter
Total Number of Ports 2
Vendor Name Trendnet
Weight (Approximate) 1.54 lb
Width 6", 10", 3"
