TRENDnet 2-Port Industrial Outdoor Gigabit UPoE Extender
TRENDnet 2-Port Industrial Outdoor Gigabit UPoE Extender

TRENDnet 2-Port Industrial Outdoor Gigabit UPoE Extender

Model: TI-EU120

Category: Hubs, Routers & Switches

Brand: Trendnet

Dealer pricing

TRENDnet's 2-Port Industrial Outdoor Gigabit UPoE extender, model TI-EU120, takes a single UPoE connection and extends it an additional 100 meters (328 ft.) for up to two PoE+ devices. It auto-detects a PoE (15.4W), PoE+ (30W), or UPoE (60W) signal and extends it for a total distance of up to 200 meters (656 ft.) from the PoE source. Daisy chain up to 4 units for a total PoE network extension of up to 500 meters (1640 ft.). This outdoor UPoE extender features a single UPoE input port and two PoE+ output ports encased in an IP67 weather rated housing. Built-in voltage booster guarantees stable voltage output for your high powered PoE devices.

UPoE Power

Extends a UPoE connection up to 100 meters (328 ft.) to PoE (15.4W), PoE+ (30W), and UPoE (60W) devices

Gigabit Ports

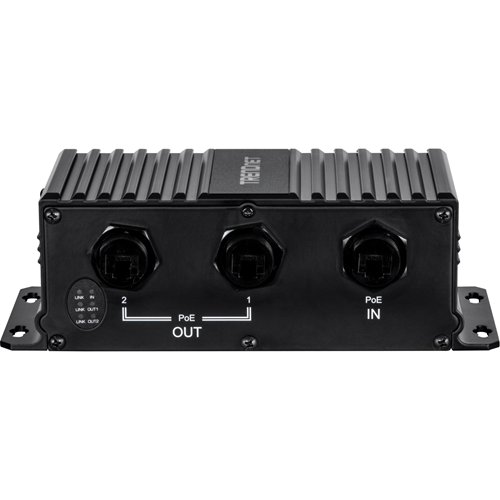

Features one gigabit UPoE input port and two gigabit PoE+ output ports that extends a single UPoE connection an additional 100 meters (328 ft.) to two PoE+ devices.

Outdoor Rated

Built for outdoor environments with an IP67 weather rating and an operating temperature range of -40°- 75° C (-40° - 167° F).
Main Features
  • Easy installation
  • Extends 100m for a total distance of up to 200m (656 ft.)
  • Daisy chain up to 4 units for a total PoE network extension of up to 500m (1640 ft.) *
  • Use a single UPoE connection to extend PoE for up to two devices
  • Supports PoE (15.4W), PoE+ (30W), UPoE (60W) devices
  • Wide operating temperature range of -40°- 75° C (-40° - 167° F)
  • IP67 outdoor weather rated housing
  • No external power adapter required
  • Built-in True Surge 6kV Protection

ADI Part Number TQ-TIEU120
Brand Name TRENDnet
Depth 4.4"
Environmentally Friendly Yes
Height 6.5"
Limited Warranty 3 Year
Model TI-EU120
Maximum Data Transfer Rate 125 MB/s
Maximum Extended Range 656.17 ft
Number of +12V Rails 2
Product Condition New
Product Type Network Extender
Width 2.4"
